Description

Sutton Tools Bridge Reamers

  • The R104 is a bridge reamer used to open or enlarge existing holes generally to line up holes in 2 different components.

Features

  • Machine use
  • For opening out existing holes
  • Ideal for alignment in fabrication & construction work

Specifications

  • Designation: N
  • Material: High-Speed Steel
  • Finish: Bright
  • Helix Angle: L15
  • Type: Bridge
  • Standard: Sutton

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed:
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Cast Iron, Grey (GG) - Ferritic / Pearlitic

Specifications

  • AIMS SKU A0012280
  • Brand Sutton Tools
  • Model Number R1041600
  • Barcode Number 9311963599588
  • Morse Taper #2
  • Reamer Size (mm) 16

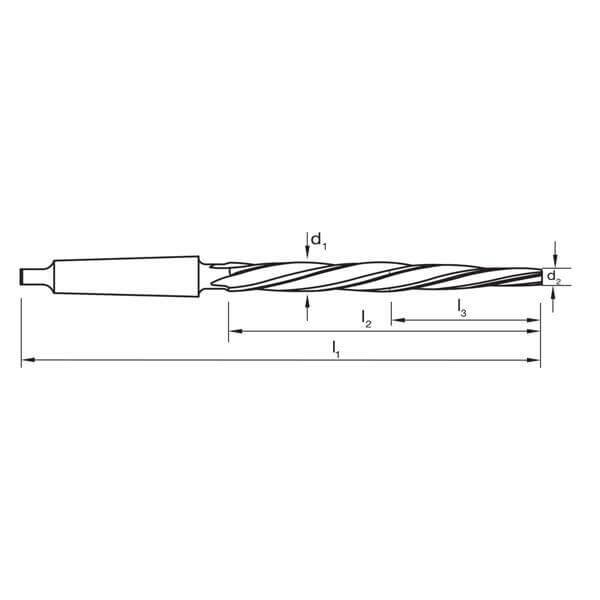

  • D2 (mm) 10.6
  • L1 (mm) 229
  • L2 (mm) 135
  • L3 (mm) 54
  • D1 (mm) 16
  • z 5
  • Group Code R104
  • Barcode 9311963599564
  • Type Bridge Reamer
  • System of Measurement Metric
  • Material High Speed Steel (HSS)
  • Finish Bright
  • Helix Angle L15
SKU: A0012280

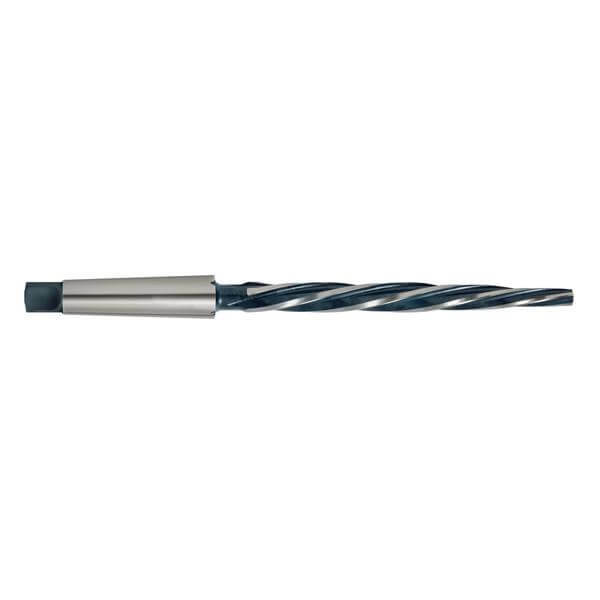

Sutton R1041600 16mm #2 Morse Taper Shank Bridge Reamer - HSS

Sutton Tools Bridge Reamers

$285.43
RRP $373.77
SAVE $88.34 (24%)
