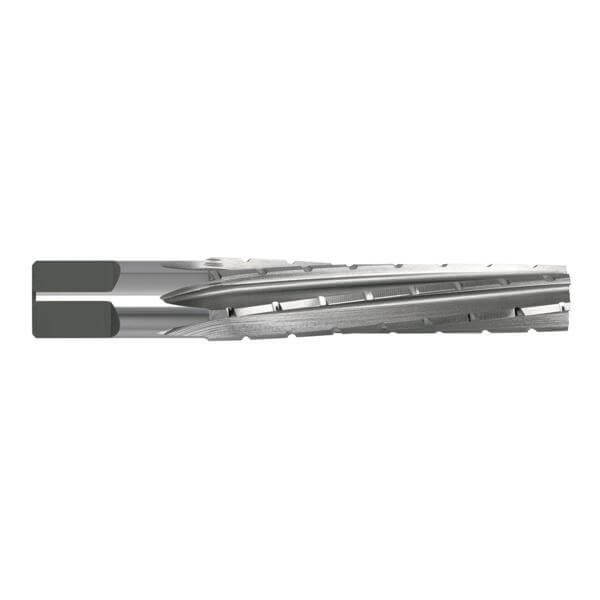

Sutton R1060000 #0 Morse Taper Socket Reamer - Roughing - HSS

Description

Features

For use by hand with suitable wrench
Suitable for tool rooms & workshop use
Rougher, opens out existing parallel holes
Finishing, to be used after rougher for final sizing

Specifications

Designation: N
Material: High Speed Steel
Finish: Bright
Helix Angle: L7
Type: Morse Taper Socket - Roughing
Standard: Sutton

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed:
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Cast Iron, Grey (GG) - Ferritic / Pearlitic

Specifications

AIMS SKU A0012313

Brand Sutton Tools

Model Number R1060000

Barcode Number 9311963034560

Morse Taper #0

Reamer Size #0

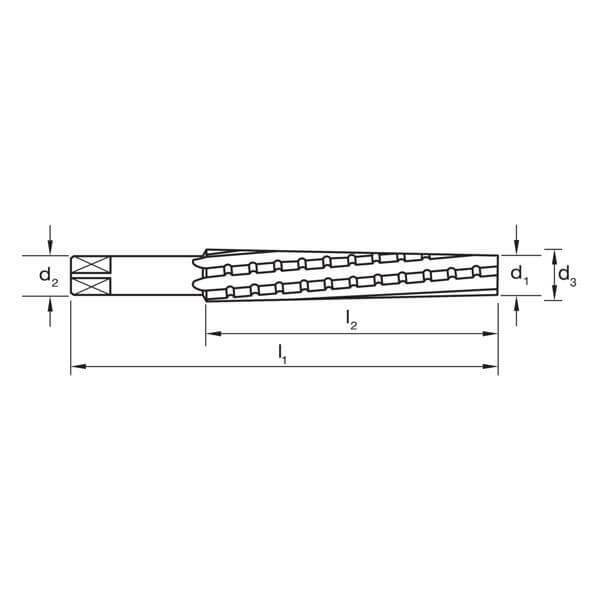

D2 (mm) 8.72

L1 (mm) 83

L2 (mm) 57

D3 (mm) 9.24

D1 (mm) 6.59

z 6

Group Code R106
Barcode 9311963034560
Type Morse Taper Socket Reamer
Material High Speed Steel (HSS)
Finish Bright
Helix Angle L7
