Description

Descriptions

  • The kingpinless swivel has a heavy-duty forged steel top plate joined to an outer swivel ring by a full complement ball race running in hardened tracks
  • Heavy duty fabricated construction allows castor to withstand high impact loads
  • The closed head ring creates a grease reservoir preventing the escape of the headrace lubricants
  • Robust brake assembly

Applications

  • Heavy machinery
  • Dollies and stillages
  • Gantries, mobile work benches
  • Ship yards
  • Mining

Specifications

  • AIMS SKU A0047919
  • Brand EasyRoll
  • Model Number TSH150CI15
  • Barcode Number 9315570903967
  • Wheel Diameter (mm) 150
  • Capacity (kg) 910
  • Tread Width (mm) 41 - 50
  • Bearing Type Roller Bearing
  • Plate Size (mm) 150 x 110
  • Working Height (mm) 202
  • Finished Height (mm) 201 - 220
  • Hole Centres (mm) 105 x 60-80
  • Weight Category 700kg - 999kg
  • Group Code TH
  • Type Swivel Plate Castor
  • Colour Silver
  • Motion Swivel
  • Frame/Hub Material Zinc Alloy
  • Indoor Use Yes
  • Outdoor Use Yes
  • Tyre/Wheel Material Cast Iron
SKU: A0047919

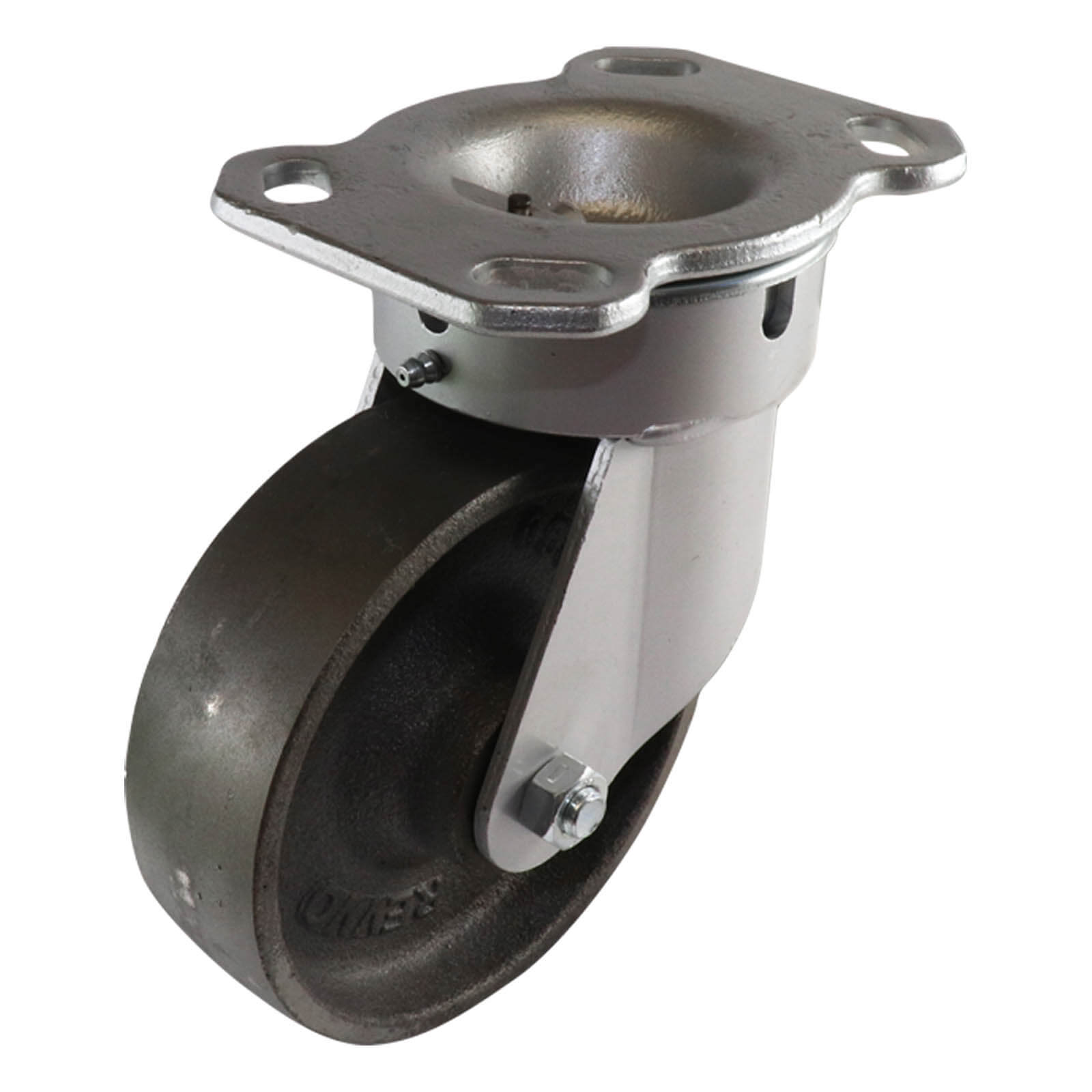

150mm Swivel Plate Castor - Cast Iron Wheel TH

EasyRoll Cast Iron Swivel Plate Castor

$212.55
