Description

Descriptions

  • High quality medium industrial 100mm Green Reflex Rubber castor with 170Kg capacity. Elastic Rubber is the most resilient rubber available and has been designed to virtually eliminate the flat spots common to rubber castors.
  • Suitable for use on, sales counters, dollies, trolleys, tool boxes, stillages, engine cranes, workshop equipment, vending machines, arcade games, general materials handling
  • Home use, DIY, Manufacturing, Factory, Work site
  •


Key Points:
- Robust & attractive Zinc plated housing is suited to all medium Industrial applications
- Double headset bearing for strength and a smooth swivelling action, plus a total locking brake for securing the unit in place.
- Reflex rubber is the best quality rubber available for maximum shock absorption for high impact loads & is resistant to forming flat spots when left stationary.
- Double Precision bearings in the wheel for low rolling resistance and minimal push effort
- Headset seals & Thread Guards protect the bearings from dust & grime, lowering the maintenance & increasing the life of the castor

Specifications

  • AIMS SKU A0049291
  • Brand EasyRoll
  • Model Number I32TZ47K125
  • Barcode Number 9315570902991
  • Wheel Diameter (mm) 125
  • Capacity (kg) 200
  • Tread Width (mm) 31 - 40
  • Bearing Type Double Precision Bearings
  • Plate Size (mm) 105 x 85
  • Working Height (mm) 155
  • Finished Height (mm) 141 - 160
  • Hole Centres (mm) 80 x 60
  • Weight Category 200kg - 299kg
  • Group Code I3
  • Type Swivel Plate Castor
  • Colour Green
  • Motion Swivel Brake
  • Frame/Hub Material Zinc Alloy
  • Indoor Use Yes
  • Outdoor Use Yes
  • Tyre/Wheel Material Green Reflex Rubber
SKU: A0049291

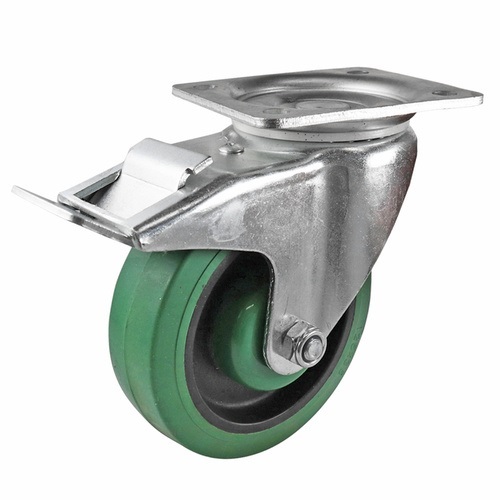

125mm Swivel Plate Castor with Brake - Reflex Rubber Wheel Green I3

EasyRoll Green Rubber Swivel Brake Castor
