Description

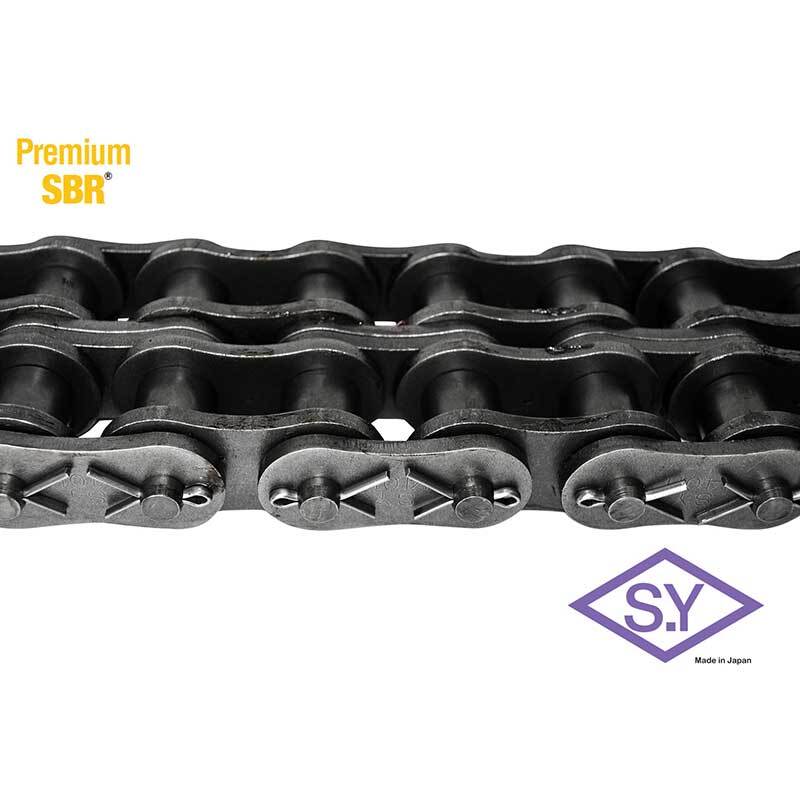

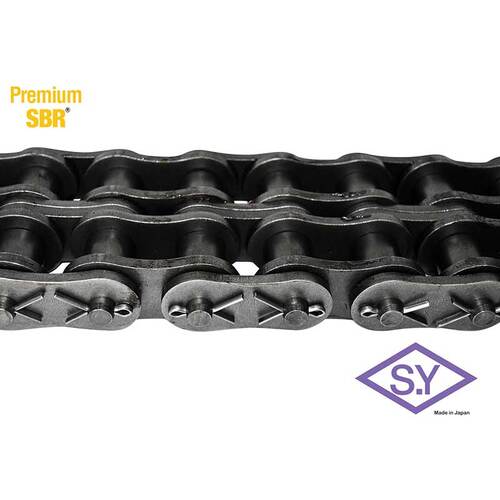

SY ASA Roller Chain Cottered Heavy Duplex

  • Sugiyama Roller Chain is the ultimate roller chain.
  • Sugiyama Chain Manufacturing Co. is the only company in the world that supplies all of its standard chains with solid bushings and solid rollers.
  • This gives SY Chain a longer service life & a higher allowable maximum load.

About Super Roller Chain

  • SY Super standard series roller chains are developed to offer you longer service life, thus leading to labor savings.
  • Thorough consideration of fitting portions and the use of high-grade special alloy steel components ensure the chain's greater resistance to fatigue and shock.
  • Operative on standard roller chain sprockets.
  • SY super heavy series roller chains provided with link plates of next larger chain size promise you SY super heavy series roller chains provided with link plates of next larger chain size promise you

All About Premium SBR

  • SBR (Solid Bushings and Rollers) chain was created through product development that brought all of our best technologies together.
  • Premium roller chains are made with solid bushings and solid rollers, specially treated pins, and bushings, and an astringently controlled heat treatment process.
  • They meet or exceed ANSI roller chain standard B29.1, making it the most suitable selection for almost any application.

Significantly Longer Wear Life

  • Conventional split bushings deform into a barrel shape when side plates are pressed on, leaving only a two-point contact area.
  • SBR (Solid Bushings & Rollers) chain has extremely cylindrical inside bushing and roller walls resulting in full contact to disperse bearing pressure.
  • Less pressure ensures excellent wear resistance.

Up to 2-3 times Longer Wear Life Over Curled Bushings Chain

  • The curled, split bushings have a seam where tiny space allows lubricant leakage resulting in shorter wear life.
  • SBR has no seam resulting in lower bearing pressure allowing the bushings to retain lubrication resulting in a much longer wear life.

Reliable Performance

  • SBR is cold-forged from steel rod.
  • The cold-forming process also works with the molecular structure (grain) of the steel running lengthwise in the bushings thereby increasing fatigue strength and preventing bushings from breakage.
  • Premium SBR chains improve the performance of transmission with lesser elongation for a long period of time.

Specifications

  • AIMS SKU A0158850
  • Brand SY Chain
  • Model Number 140H-2COT/SY
  • Type Roller Chain
  • System of Measurement American (ASA)
  • Strand Duplex
  • Chain Number 140H

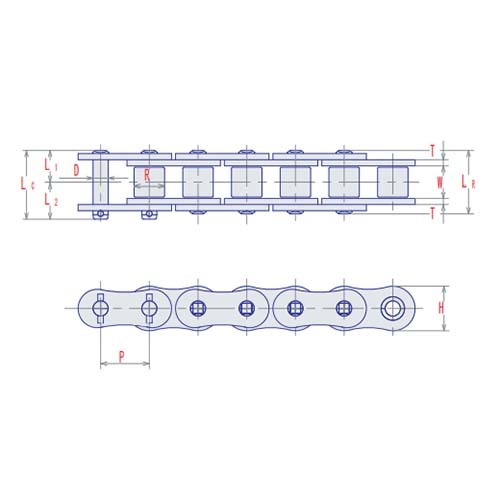

  • Trans Pitch TP (mm) 52.2
  • Average Chain Weight 16.59
  • Plate Height T (mm) 6.4
  • Plate Height H (mm) 40.9
  • Pin Length L2 (mm) 59.3
  • Pin Length L1 (mm) 54.7
  • Pin Length LC (mm) 114
  • Pin Length LR (mm) 109.4
  • Roller Diameter R (mm) 25.4
  • Roller Width W (mm) 25.4
  • Pin Diameter d (mm) 12.7
  • Pitch P (mm) 44.45
  • Chain Length 10 ft
  • Chain Pitch 1-3/4 in
  • Maximum Allowable Load (kN) 70
  • Average Ultimate Strength (kN) 482
SKU: A0158850

SY 140H-2 ASA Roller Chain Cottered Heavy Duplex 1-3/4" Pitch - Box of 10 Foot

SY ASA Roller Chain Cottered Heavy Duplex

$2,673.37
