Description

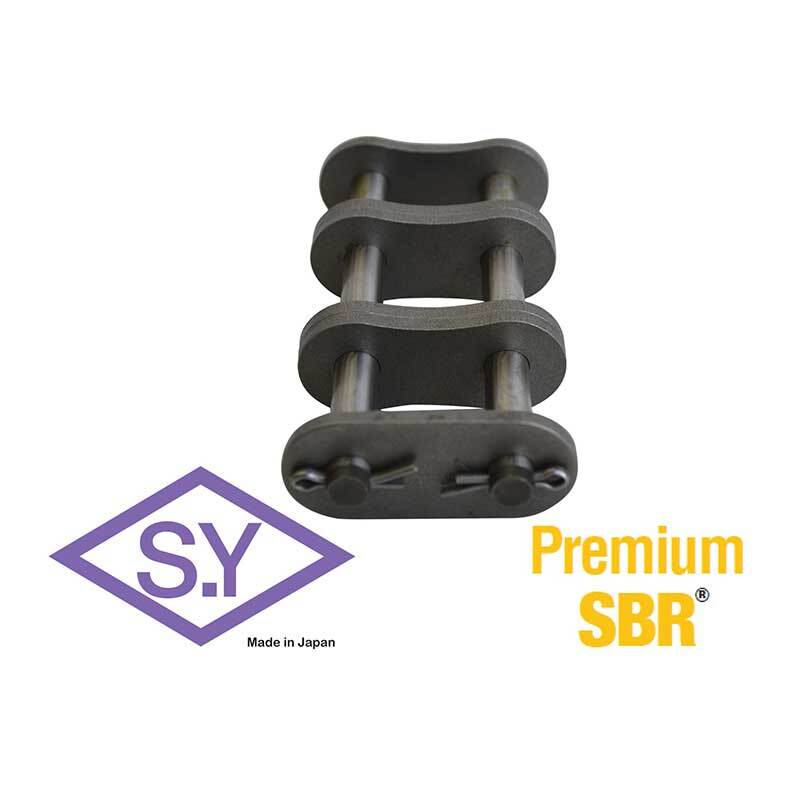

SY BS Roller Chain Connecting Link Triplex

  • Sugiyama Roller Chain is the ultimate roller chain.
  • Sugiyama Chain Manufacturing Co. is the only company in the world that supplies all of its standard chains with solid bushings and solid rollers.
  • This gives SY Chain a longer service life & a higher allowable maximum load.

About BS Standard Roller Chain

  • SY BS standard roller chains are standardized in accordance with ISO 606 B and fully inter-changeable with chains manufactured according to BS 228 and DIN 8187.
  • Supplied, in rivet type, to European countries as well as replacement on machinery employing BS standard chains.

All About Premium SBR

  • SBR (Solid Bushings and Rollers) chain was created through product development that brought all of our best technologies together.
  • Premium roller chains are made with solid bushings and solid rollers, specially treated pins, and bushings, and an astringently controlled heat treatment process.
  • They meet or exceed ANSI roller chain standard B29.1, making it the most suitable selection for almost any application.

Significantly Longer Wear Life

  • Conventional split bushings deform into a barrel shape when side plates are pressed on, leaving only a two-point contact area.
  • SBR (Solid Bushings & Rollers) chain has extremely cylindrical inside bushing and roller walls resulting in full contact to disperse bearing pressure.
  • Less pressure ensures excellent wear resistance.

Up to 2-3 times Longer Wear Life Over Curled Bushings Chain

  • The curled, split bushings have a seam where tiny space allows lubricant leakage resulting in shorter wear life.
  • SBR has no seam resulting in lower bearing pressure allowing the bushings to retain lubrication resulting in a much longer wear life.

Reliable Performance

  • SBR is cold-forged from steel rod.
  • The cold-forming process also works with the molecular structure (grain) of the steel running lengthwise in the bushings thereby increasing fatigue strength and preventing bushings from breakage.
  • Premium SBR chains improve the performance of transmission with lesser elongation for a long period of time.

Specifications

  • AIMS SKU A0158851
  • Brand SY Chain
  • Model Number 32B-3CL/SY
  • Type Connecting Link
  • System of Measurement British (BS)
  • Strand Triplex
  • Chain Number 32BC/L
  • Chain Pitch 2 in
SKU: A0158851

SY 32B-3 BS Roller Chain Connecting Link Triplex 2" Pitch

SY BS Roller Chain Connecting Link Triplex

$194.99
