Description

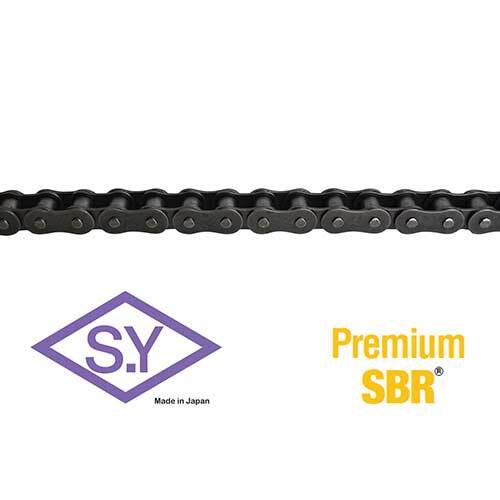

SY ASA Roller Chain Extra Heavy Simplex

  • Sugiyama Chain Manufacturing Co. is the only company in the world that supplies all of its standard chains with solid bushings and solid rollers.
  • This gives SY Chain a longer service life & a higher allowable maximum load.

Features

  • +30% Higher Fatigue Strength
    - Higher safety factor is gained
    - Downsizing to smaller chain is possible in some applications
    - Cost Savings
  • The longest chain life
    - Significantly longer wear
    - Up to 2-3 times longer wear life over curled bushings
    - Reliable performance

All About Extra Heavy Roller Chain (HE)

  • "HE" type roller chains are designed with thicker link plates to ensure greater capacity for absorbing shock loads without fatigue failure of side plates.
  • They are also made with high quality alloys and through-hardened pins to better resist fatigue failure.
  • Connecting links are "cotter" style for size 80 HE.
  • HE type multiple strand chains are standardly designed for loose-fit center plate construction.
  • HE type multiple strand chains can be constructed with semi press-fit center plates upon request.
  • BCL connecting links are standardly equipped for HE type multiple strand chains with semi press-fit center plate construction.
  • HE type chains are designed to be used with standard sprockets. HE type multiple strand chains are not designed to be used with standard sprockets.
  • Takes account of a 35% reduction of fatigue strength when a single pitch offset link is used.

Specifications

  • AIMS SKU A0158150
  • Brand SY Chain
  • Model Number 60HE-1/SY
  • Chain Number 60HE
  • Average Tensile Strength (kN) 110
  • Maximum Allowable Load (kN) 15.2
  • Chain Pitch 3/4 in
  • Pitch P (mm) 19.05
  • Pin Diameter d (mm) 5.95
  • Roller Width W (mm) 12.7
  • Roller Diameter R (mm) 11.91
  • Pin Length LR (mm) 54.9
  • Pin Length LC (mm) 57
  • Pin Length L1 (mm) 27.4
  • Pin Length L2 (mm) 29.6
  • Plate Height H (mm) 17.5
  • Plate Thickness T (mm) 3.2
  • Average Chain Weight kg/m (mm) 0.59
  • Trans.Pitch TP (mm) 26.1
  • Type Roller Chain
  • System of Measurement American (ASA)
  • Strand Simplex
SKU: A0158150

SY 60HE-1 ASA Roller Chain Extra Heavy Simplex 3/4" Pitch - Box of 10 Foot

SY ASA Roller Chain Extra Heavy Simplex

$344.41
