Description

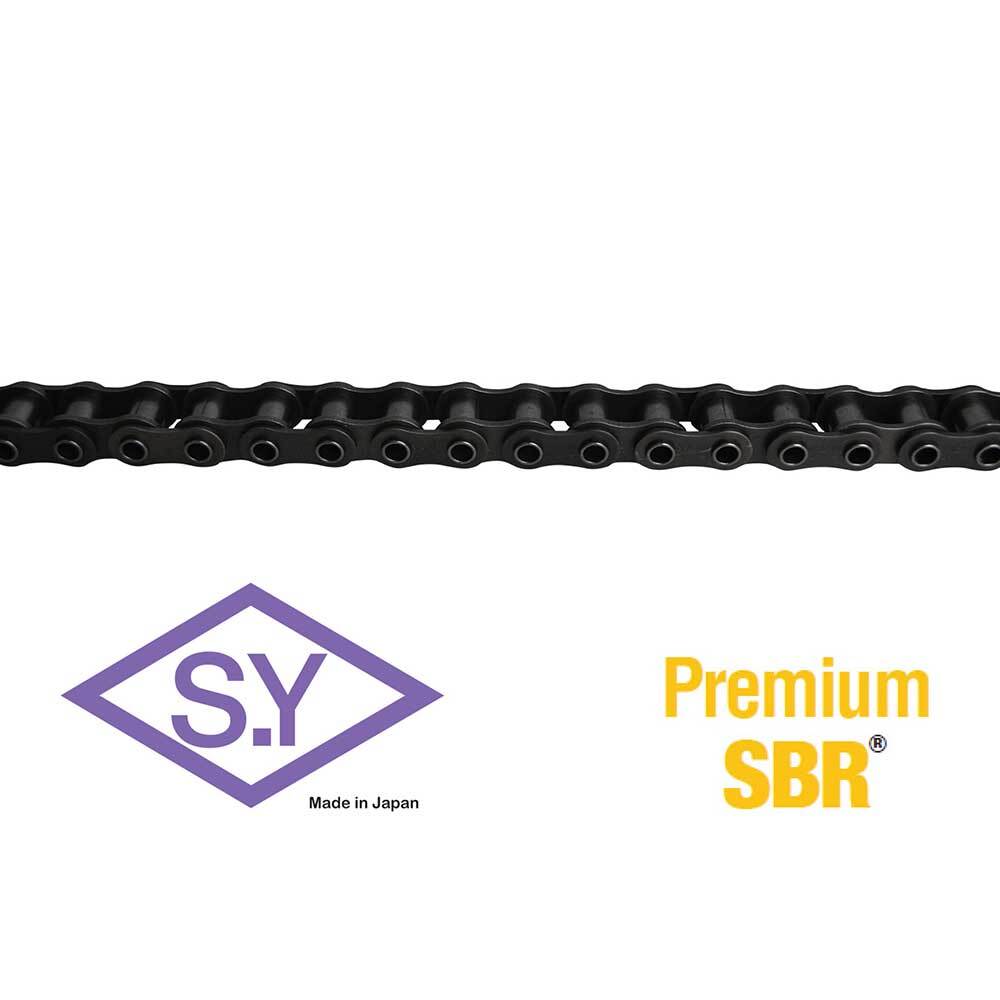

SY ASA Roller Chain Hollow Pin

  • SY Hollow pin chains are identical to ANSI roller chains, and run on standard ANSI sprockets.
  • The unique hollow pin feature provides unlimited conveyor versatility, allowing easy insertion of cross rods or attachments to pre-assembled chain at desired spacing.
  • For identification, the suffix HP is added to the chain numbers.

All About Hollow Pin Chain

  • "HP" type chains are constructed with cold-forged solid bushings.
  • This process assures that the inside diameter of the bushing's hollow center is completely cylindrical all the way through.
  • This unique hollow pin feature allows for easy insertion of cross rods without damaging the chain or rods.
  • HP type chains are a bushed chain which made without rollers.
  • Offset links are not available.

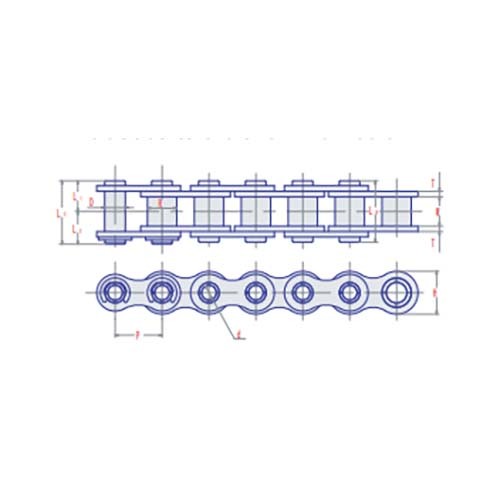

Specifications

  • AIMS SKU A0158708
  • Brand SY Chain
  • Model Number 40HP/SY
  • Chain Number 40HP
  • Roller Diameter R (mm) 7.92
  • Hollow Pin Length L2 (mm) 9.2
  • Hollow Pin Length L1 (mm) 8.4
  • Hollow Pin Length LC (mm) 17.6
  • Length Lr (mm) 16.7
  • Inside d (mm) 4.03
  • Hollow Pin Outside D (mm) 5.63
  • Plate Thickness T (mm) 1.5
  • Plate Height H (mm) 12
  • Roller Width W (mm) 7.95
  • Pitch P (mm) 12.7
  • Chain Length 10 ft
  • Roller Chain Type Hollow Pin
  • Chain Pitch 1/2 in
  • Average Chain Weight (kg/m) 0.58
  • Maximum Allowable Load (kN) 1.77
  • Average Ultimate Strength (kN) 12.7
  • Type Roller Chain
  • System of Measurement American (ASA)
SKU: A0158708

SY 40HP ASA Roller Chain Hollow Pin 1/2" Pitch - Box of 10 Foot

SY ASA Roller Chain Hollow Pin

$309.52
