Specifications
- AIMS SKU A0157963
- Brand SY Chain
- Model Number 35-1/SY
- Chain Number 35
- Maximum Allowable Load (kN) 2.48
- Chain Pitch 3/8 in
- Pitch P (mm) 9.525
- Pin Diameter d (mm) 3.58
- Roller Width W (mm) 4.78
- Roller Diameter R (mm) 5.08
- Pin Length LR (mm) 12
- Pin Length LC (mm) 12.9
- Pin Length L1 (mm) 6
- Pin Length L2 (mm) 6.9
- Plate Height H (mm) 9
- Plate Thickness T (mm) 1.25
- Trans. Pitch TP (mm) -
- Average Tensile Strength KN (mm) 10.8
- Average Chain Weight kg/m (mm) 0.34
- Type Roller Chain
- System of Measurement American (ASA)
- Strand Simplex
SKU: A0157963

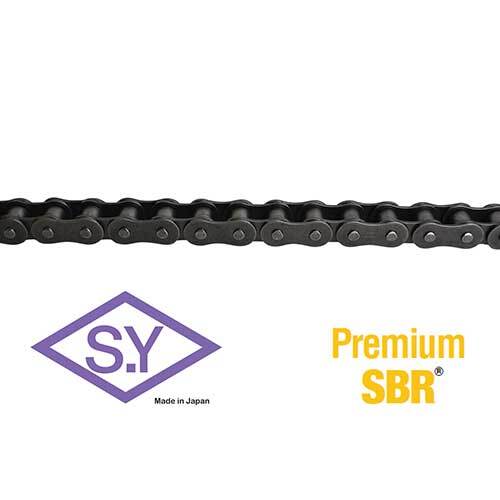

SY 35-1 ASA Roller Chain Simplex 3/8" Pitch - Box of 10 Foot
SY ASA Roller Chain Simplex
$81.37
