Specifications
- AIMS SKU A0158014
- Brand SY Chain
- Model Number 40-3/SY
- Chain Number 40
- Maximum Allowable Load (kN) 9.08
- Chain Pitch 1/2 in
- Pitch P (mm) 12.7
- Pin Diameter d (mm) 3.96
- Roller Width W (mm) 7.95
- Roller Diameter R (mm) 7.92
- Pin Length LR (mm) 45.4
- Pin Length LC (mm) 46.6
- Pin Length L1 (mm) 22.7
- Pin Length L2 (mm) 23.9
- Plate Height H (mm) 11.7
- Plate Thickness T (mm) 1.5
- Trans. Pitch TP (mm) 14.4
- Average Tensile Strength KN (mm) 57.3
- Average Chain Weight kg/m (mm) 1.85
- Type Roller Chain
- System of Measurement American (ASA)
- Strand Triplex
SKU: A0158014

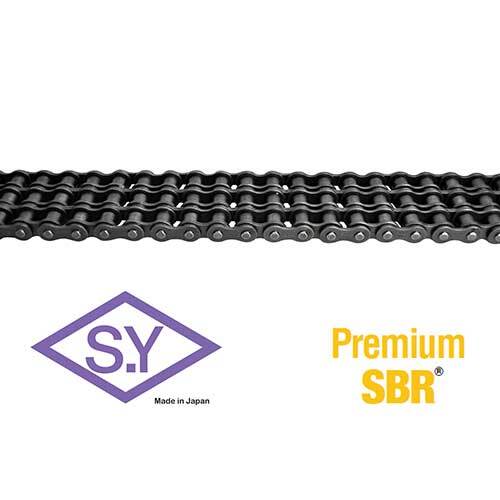

SY 40-3 ASA Roller Chain Triplex 1/2" Pitch - Box of 10 Foot
SY ASA Roller Chain Triplex
$408.89
