Specifications

AIMS SKU A0158716
Brand SY Chain
Model Number C2050HP/SY
Chain Number C2050HP

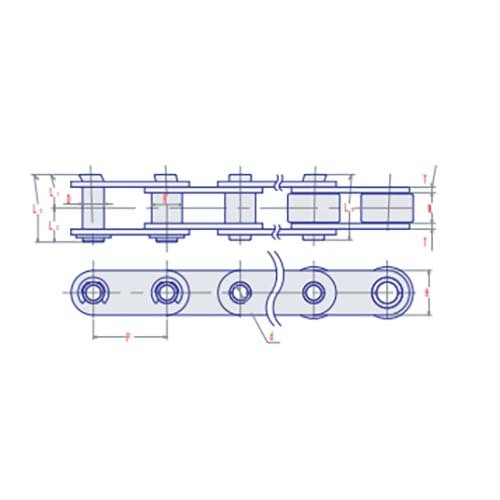

Roller Diameter R (mm) 10.16
Hollow Pin Length L2 (mm) 11.2
Hollow Pin Length L1 (mm) 10.1
Hollow Pin Length LC (mm) 21.3
Length Lr (mm) 20.1
Inside d (mm) 5.13
Hollow Pin Outside D (mm) 7.09
Roller Type S
Plate Thickness T (mm) 2
Plate Height H (mm) 15
Roller Width W (mm) 9.53
Pitch P (mm) 31.75
Chain Length 10 ft

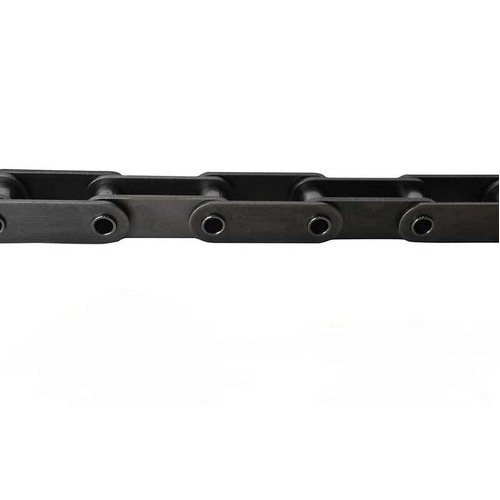

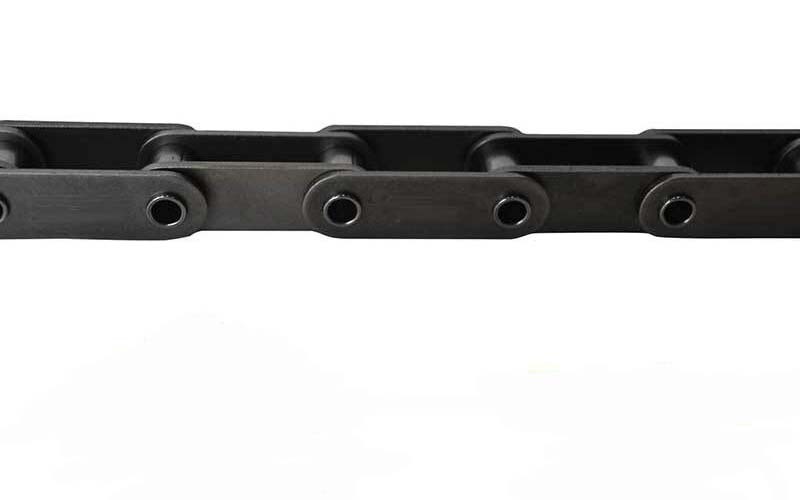

Roller Chain Type Hollow Pin
Chain Pitch 1-1/4 in
Average Chain Weight (kg/m) 0.76
Maximum Allowable Load (kN) 3.14
Average Ultimate Strength (kN) 19.6
• Type Roller Chain
