Description

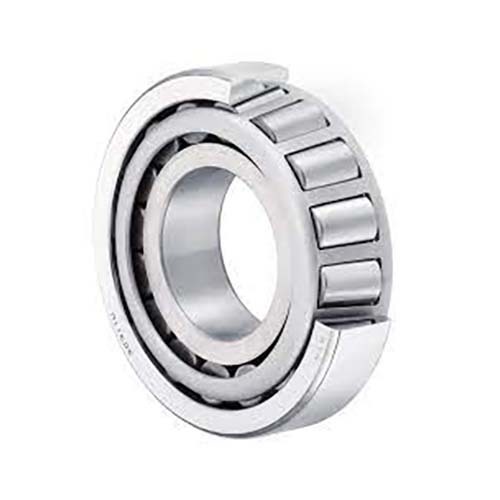

Tapered Roller Bearing - Metric

  • Metric.

All About Tapered Roller Bearing

  • Tapered roller bearings are designed so the inner/outer ring raceway and apex of the tapered rollers intersect at one point on the bearing centerline.
  • By receiving a combined load from the inner and outer ring, the rollers are pushed against the inner ring rib and are guided by the rib.
  • Induced force is produced in the axial direction when a radial load is applied, so it must be handled with a pair of bearings.
  • The inner ring with rollers and outer ring come apart, thus facilitating mounting with clearance or preload.
  • Assembled clearance is however hard to manage and requires special attention.
  • Tapered roller bearings are capable of supporting large loads in both the axial and radial directions.
  • NTN also has a line of case hardened steel bearings designed for longer life.
  • NTN tapered roller bearings also include bearings with two and four rows of tapered rollers for extra-heavy loads.

Specifications

  • AIMS SKU A0156747
  • Brand NTN
  • Model Number 32008/NTN

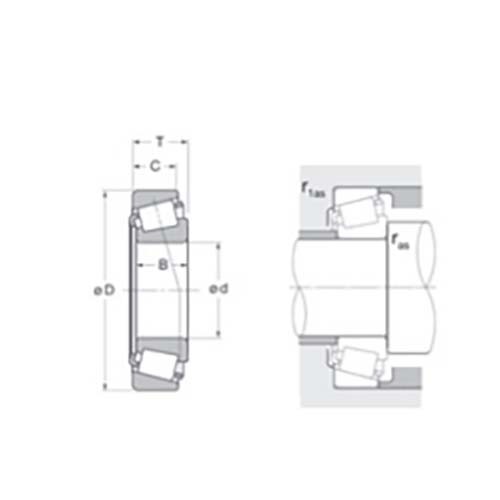

  • Width (mm) 19
  • Outer Diameter (mm) 68
  • Inner Diameter (mm) 40
  • Inner Ring Width (B) 19
  • Outer Ring Width ( mm) 14.5
  • Maximum Shaft Link Radius (ras max) 1
  • Maximum housing link radius (r1as max) 1
  • Dynamic load capacity C 50
  • Static load capacity C0 kN 65.5
  • Limit Speed With Grease Lub 5300
  • Limit Speed With Oil Lub Rpm 7100
  • Type Tapered Roller Bearings
  • Series 320
SKU: A0156747

NTN 32008 Tapered Roller Bearing 320 Series Metric 40 x 68 x 19mm
