Description

Tapered Roller Bearings

  • Tapered roller bearings are roller bearings with conical rollers.
  • These bearings are designed to support heavy radial loads and heavy thrust loads in one direction.
  • Tapered roller bearings are generally separable; for example, the cone, consisting of the inner ring with roller assembly, can be mounted separately from the cup (outer ring).
  • Single Row Imperial Dimensions Tapered Roller Bearing designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads.

Specifications

  • AIMS SKU A0106225
  • Brand NACHI
  • Model Number 30305DJ/NACHI

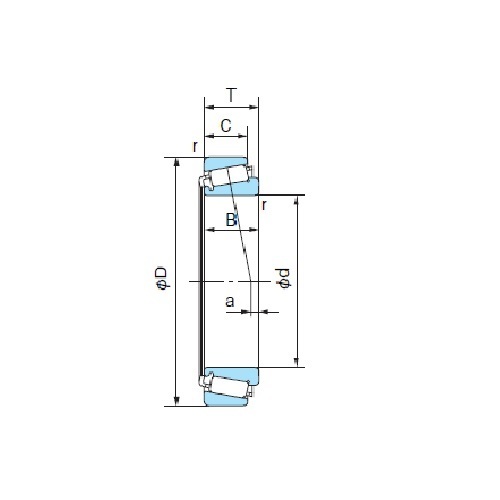

  • Bore Diameter x Outer Diameter x Width (mm) 25 x 62 x 18.25
  • Basic Dynamic Load Rating (n) 48200
  • Basic Static Load (N) 46900
  • Limiting Speed (rpm) Grease Lubrication 6800
  • Limiting Speed (rpm) Oil Lubrication 9000
  • Width (b) mm 17
  • Group Code E30316DJ/NACHI
  • Type Tapered Roller Bearings
  • System of Measurement Metric
  • Series 30303-32314
SKU: A0106225 On Sale

NACHI 30305DJ Tapered Roller Bearings 30300 Series 25 x 62 x 18.25mm

Tapered Roller Bearings 30300 Series

$18.65
$26.64
