Specifications
- AIMS SKU A0097858
- Brand TechTop
- Model Number TA2A0097TMY
- Poles 2
- Mounting Type Flange-Mounted
- Base RPM 2760
- IEC Frame Size 56 A
- Shaft Diameter 9 mm
- Mounting Position B14A
- Group Code Techtop-TMY-0.09kw
- Type Single Phase
- Material Aluminium
- Nominal Rated Input Voltage 240 V
- Rated Load (kW) 0.09
- Rated Load (HP) 0.12
- Series Techtop TMY
- AC Phase Single Phase
- Current Type AC
SKU: A0097858

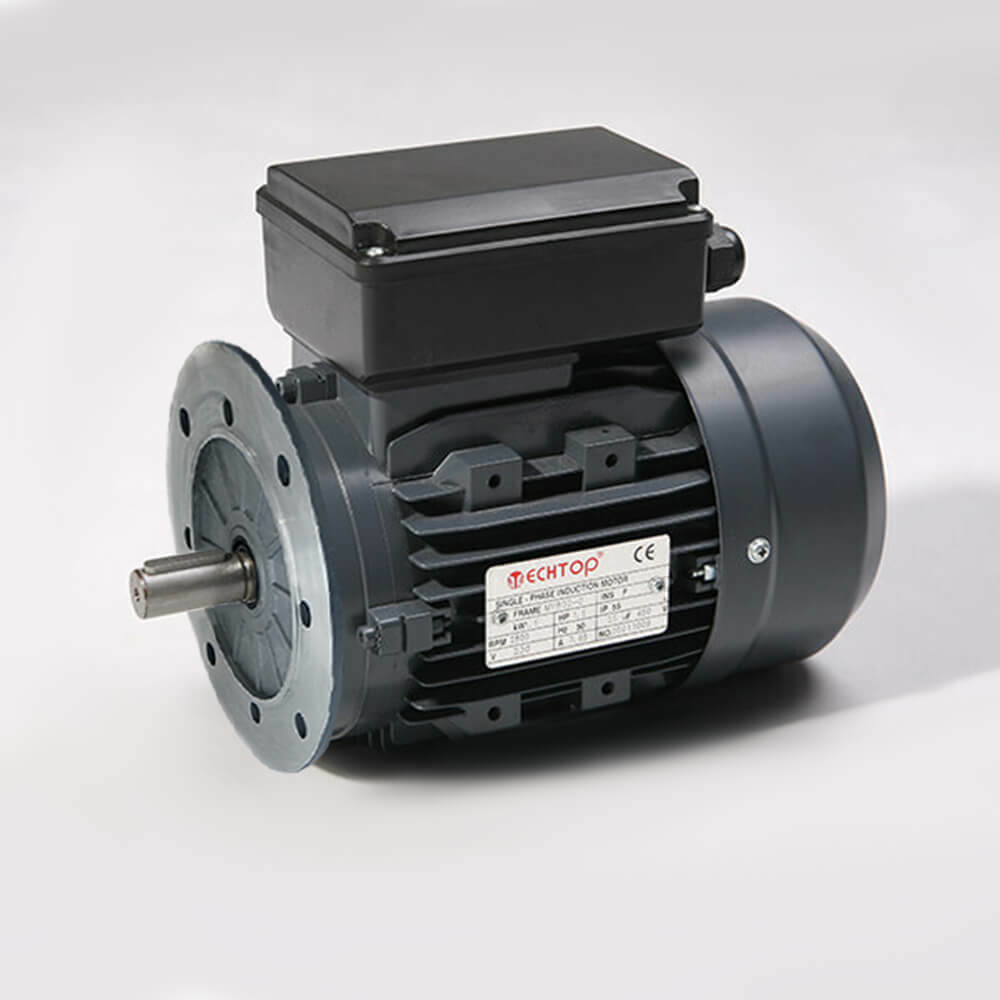

TechTop 0.09kW 0.12 HP Motor 240V 1 Phase 2 Pole, 2760 RPM, Flange Mount TA2A0097TMY
240V Permanent Split Capacitor Motor (TA2A0097TMY)
$146.07
