Specifications
- AIMS SKU A0097766
- Brand TechTop
- Model Number TA4A0094TMY
- Poles 4
- Mounting Type Foot & Flange Mounted
- Base RPM 1370
- IEC Frame Size 56 B
- Shaft Diameter 9 mm
- Mounting Position B3,B5
- Group Code Techtop-TMY-0.09kw
- Type Single Phase
- Material Aluminium
- Nominal Rated Input Voltage 240 V
- Rated Load (kW) 0.09
- Rated Load (HP) 0.12
- Series Techtop TMY
- AC Phase Single Phase
- Current Type AC
SKU: A0097766

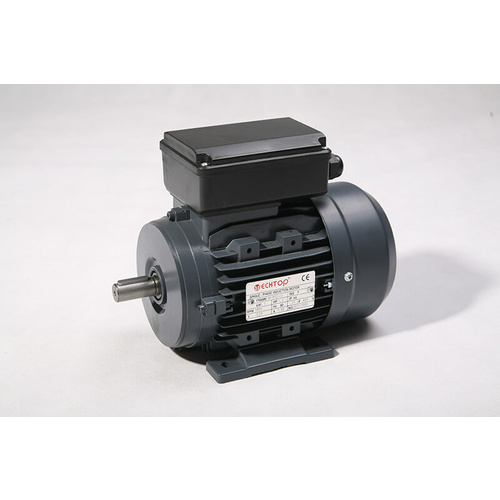

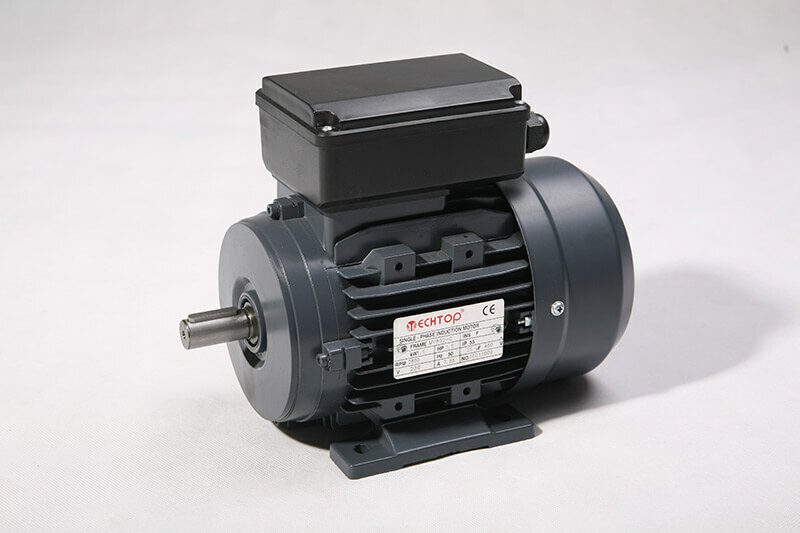

TechTop 0.09kW 0.12 HP Motor 1 Phase 4 Pole, 1370 RPM, Foot & Flange TA4A0094TMY
240V Permanent Split Capacitor Motor (TA4A0094TMY)
$164.10
