TechTop’s TAI aluminium series AC induction motors are suitable for all industrial applications where optimal design performance and low weight are key factors.

As standard, TechTop’s TAI series electric motors are fitted with detachable feet allowing for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Minimum Energy Performance Standards (MEPS) Compliant

Specifications

  • AIMS SKU A0098180
  • Brand TechTop
  • Model Number TA4A0093TAI
  • Poles 4
  • Mounting Type Foot-Mounted
  • Base RPM 1375
  • IEC Frame Size 56 B
  • Shaft Diameter 9 mm
  • Mounting Position B3
  • Group Code Techtop-TAI-0.09kw
  • Type Three Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 415 V
  • Rated Load (kW) 0.09
  • Rated Load (HP) 0.12
  • Series Techtop TAI
  • AC Phase Three Phase
  • Current Type AC
SKU: A0098180

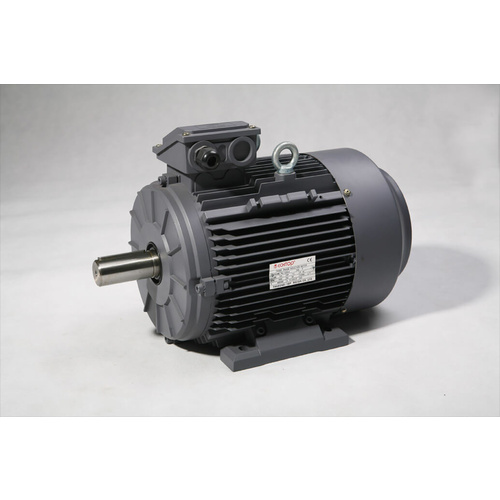

TechTop 0.09kW 0.12 HP Motor 415V 3 Phase 4 Pole, 1375 RPM, Foot Mount TA4A0093TAI

415V Three Phase Aluminium Motor (TA4A0093TAI)

$110.00
