Specifications
- AIMS SKU A0097829
- Brand TechTop
- Model Number TA6A0096TMY
- Poles 6
- Mounting Type Foot & Flange Mounted
- Base RPM 900

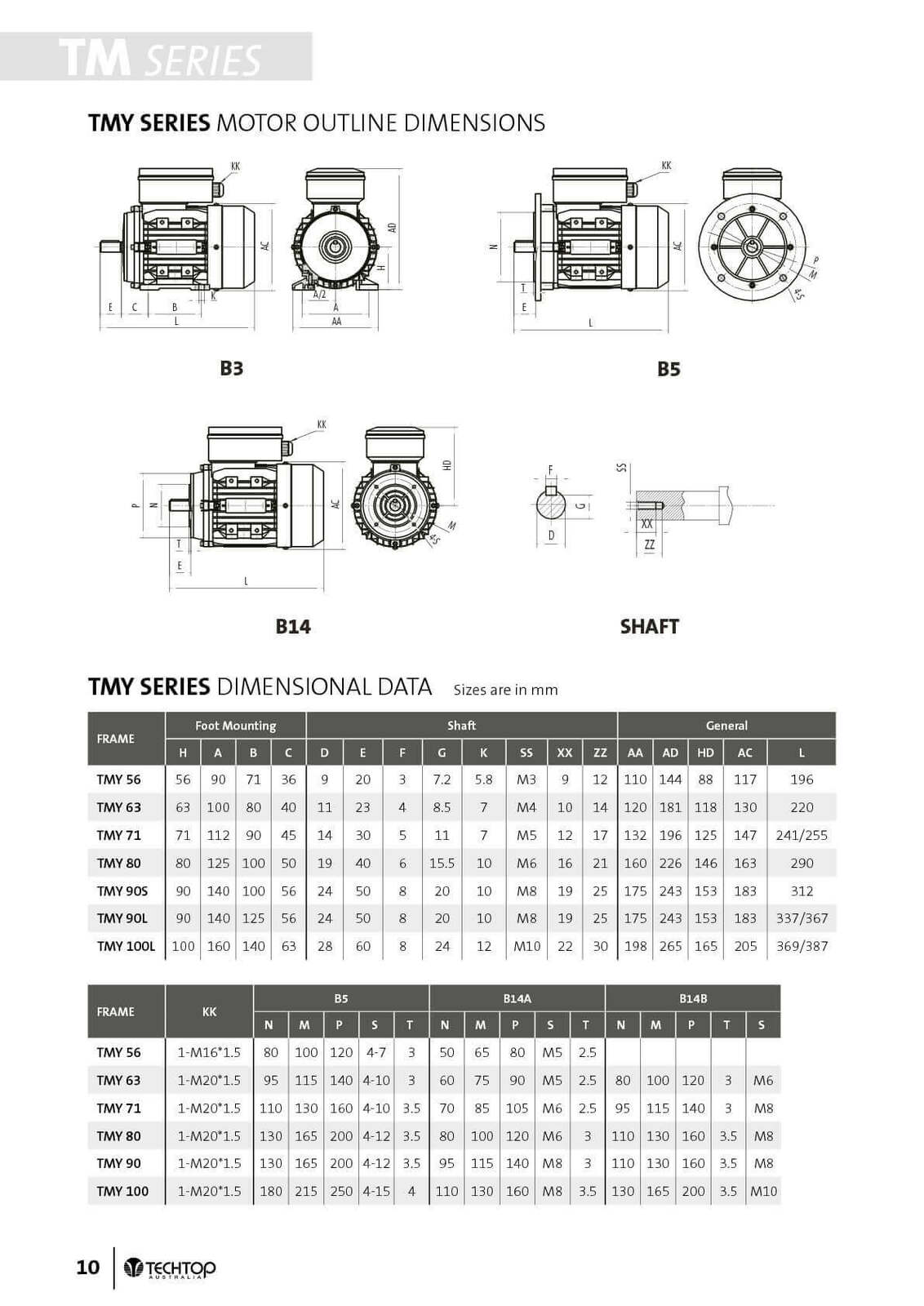

- IEC Frame Size 63 A
- Shaft Diameter 11 mm
- Mounting Position B3,B14A
- Group Code Techtop-TMY-0.09kw
- Type Single Phase
- Material Aluminium
- Nominal Rated Input Voltage 240 V
- Rated Load (kW) 0.09
- Rated Load (HP) 0.12
- Series Techtop TMY
- AC Phase Single Phase
- Current Type AC
SKU: A0097829

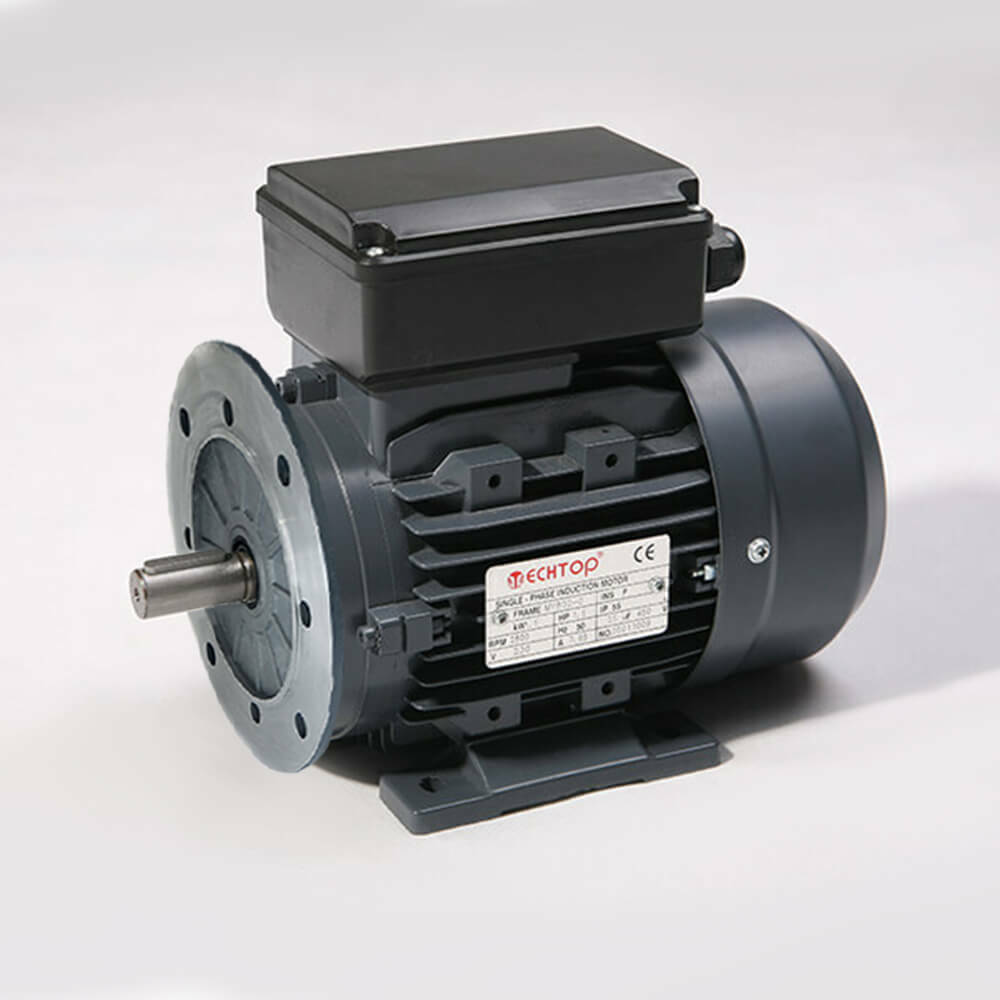

TechTop 0.09kW 0.12 HP Motor 1 Phase 6 Pole, 900 RPM, Foot & Flange TA6A0096TMY
240V Permanent Split Capacitor Motor (TA6A0096TMY)
$198.36
