Description

TechTop’s TAI aluminium series AC induction motors are suitable for all industrial applications where optimal design performance and low weight are key factors.

As standard, TechTop’s TAI series electric motors are fitted with detachable feet allowing for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Minimum Energy Performance Standards (MEPS) Compliant

Specifications

  • AIMS SKU A0098655
  • Brand TechTop
  • Model Number TA6A0099TAI
  • Poles 6
  • Mounting Type Flange-Mounted
  • Base RPM 840

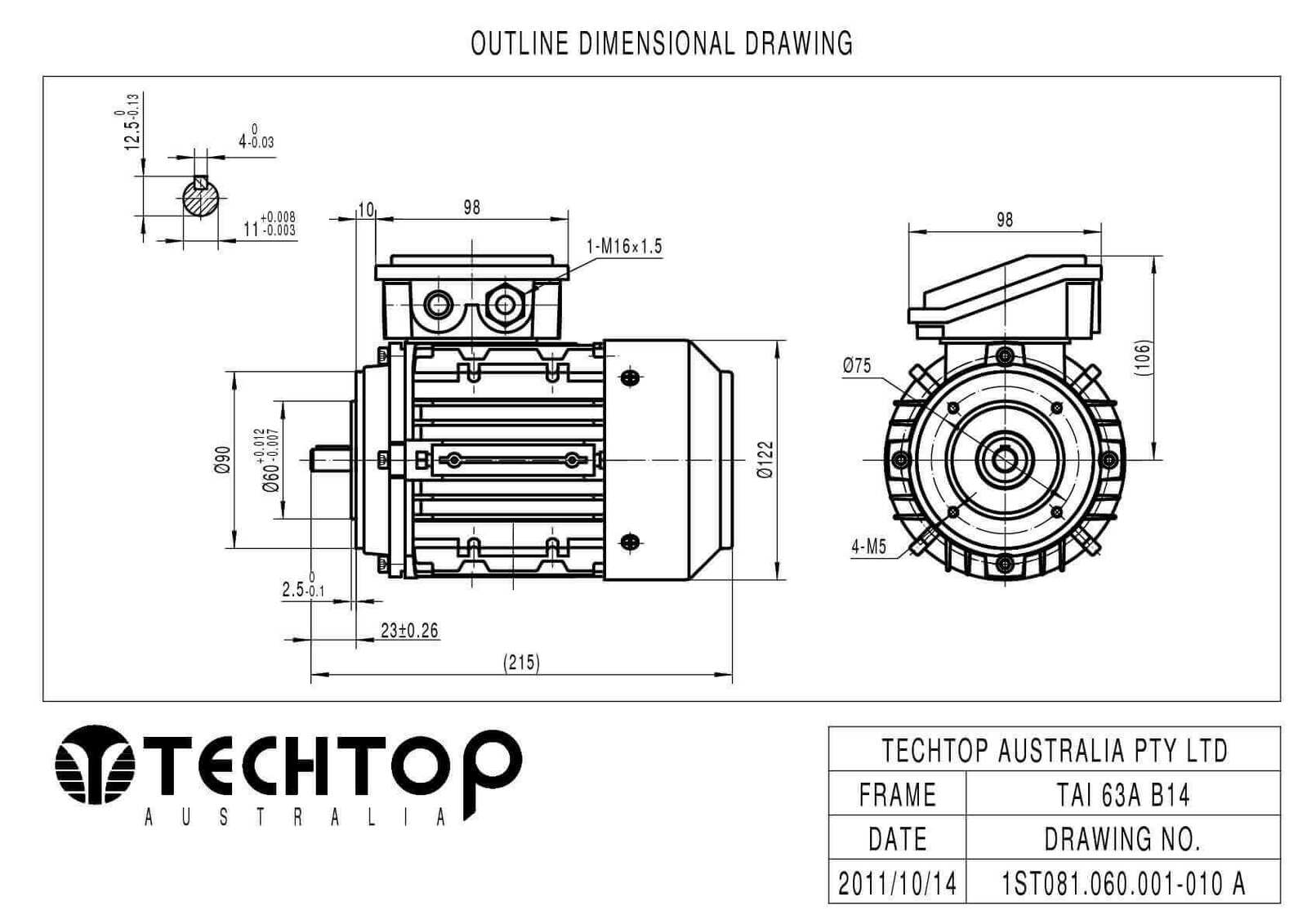

  • IEC Frame Size 63 A
  • Shaft Diameter 11 mm
  • Mounting Position B14B
  • Group Code Techtop-TAI-0.09kw
  • Type Three Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 415 V
  • Rated Load (kW) 0.09
  • Rated Load (HP) 0.12
  • Series Techtop TAI
  • AC Phase Three Phase
  • Current Type AC
SKU: A0098655

TechTop 0.09kW 0.12 HP Motor 415V 3 Phase 6 Pole, 840 RPM, Flange Mount TA6A0099TAI

415V Three Phase Aluminium Motor (TA6A0099TAI)

$140.66
