Description

Permanent Split Capacitor Motor

  • TechTop's TMY series AC induction motors are ideally suited for fan and pump applications where performance and low weight are key factors
  • The multi-mount design of TechTop's TMY series electric motor allows for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Specifications

  • AIMS SKU A0097738
  • Brand TechTop
  • Model Number TA4A0123TMY
  • Poles 4
  • Mounting Type Foot-Mounted
  • Base RPM 1380
  • IEC Frame Size 63 A
  • Shaft Diameter 11 mm
  • Mounting Position B3
  • Group Code Techtop-TMY-0.12kw
  • Type Single Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 240 V
  • Rated Load (kW) 0.12
  • Rated Load (HP) 0.16
  • Series Techtop TMY
  • AC Phase Single Phase
  • Current Type AC
SKU: A0097738

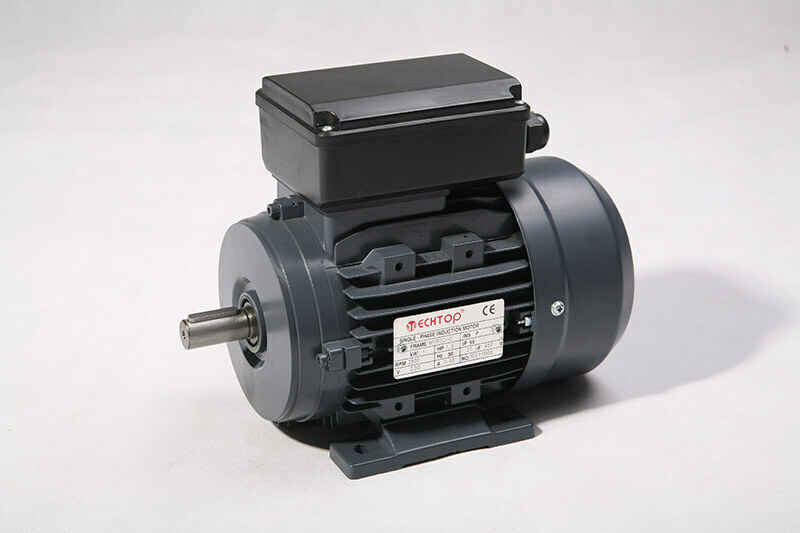

TechTop 0.12kW 0.16 HP Motor 240V 1 Phase 4 Pole, 1380 RPM, Foot Mount TA4A0123TMY

240V Permanent Split Capacitor Motor (TA4A0123TMY)

$173.12
