Description

TechTop’s TMY series AC induction motors are ideally suited for fan and pump applications where performance and low weight are key factors

The multi-mount design of TechTop’s TMY series electric motor allows for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Specifications

  • AIMS SKU A0097895
  • Brand TechTop
  • Model Number TA2A0188TMY
  • Poles 2
  • Mounting Type Foot & Flange Mounted
  • Base RPM 2780
  • IEC Frame Size 63 A
  • Shaft Diameter 11 mm
  • Mounting Position B3,B14B
  • Group Code Techtop-TMY-0.18kw
  • Type Single Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 240 V
  • Rated Load (kW) 0.18
  • Rated Load (HP) 1/4
  • Series Techtop TMY
  • AC Phase Single Phase
  • Current Type AC
SKU: A0097895

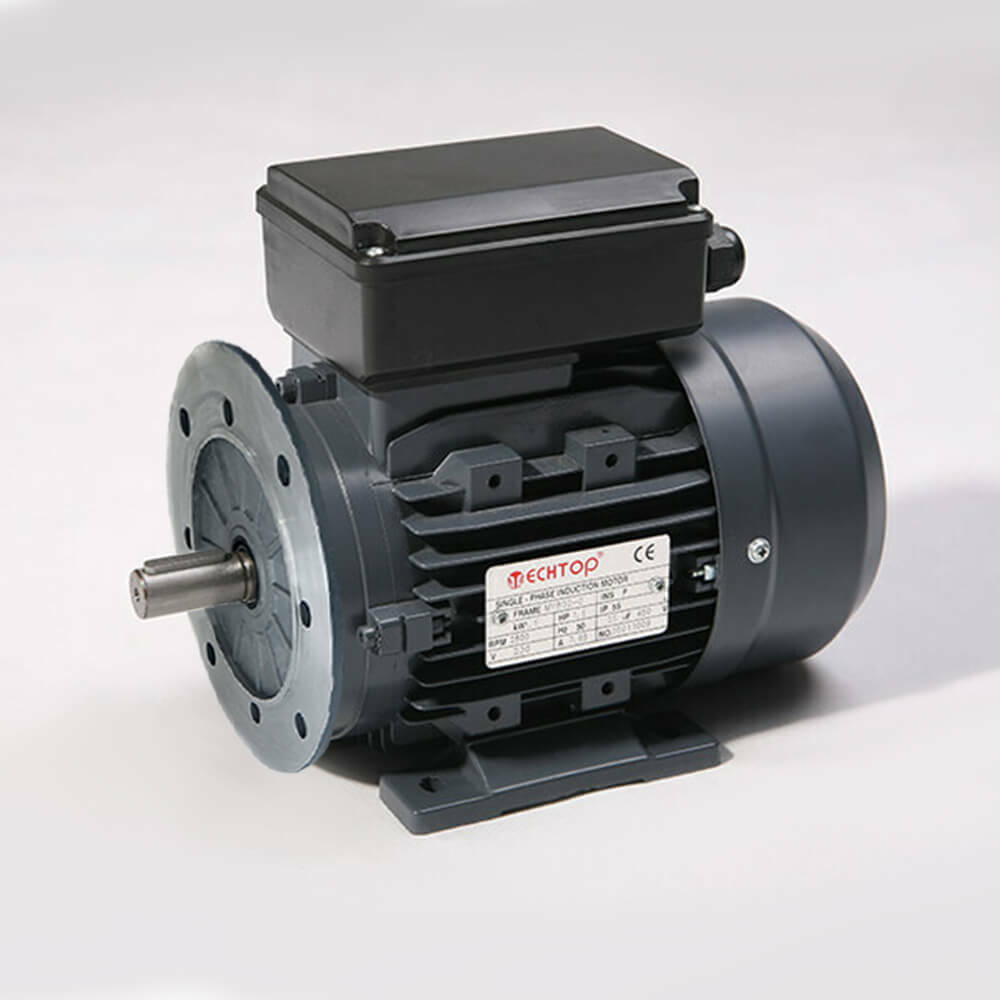

TechTop 0.18kW 1/4 HP Motor 1 Phase 2 Pole, 2780 RPM, Foot & Flange TA2A0188TMY

240V Permanent Split Capacitor Motor (TA2A0188TMY)

$171.31
5/5 based on 1 review.
See all reviews

Choose a different size/variant

Calculate Shipping

Resources

Browse other products under

240V Single Phase Motors

Browse other products by

TechTop

Reviews

Good fit

"The motor fitted nicely in the same spot as the old one"

-
