Description

TechTop’s TML series AC induction motors are ideally suited for all general purpose applications where starting torque performance and low weight are key factors.

The TechTop TML series electric motor's flexibility in mounting arrangements makes it a perfect fit for aluminium gearbox applications.

Motors up to 2.2kW are fitted with manual reset overload

Specifications

  • AIMS SKU A0097952
  • Brand TechTop
  • Model Number TA6A0183TML
  • Poles 6
  • Mounting Type Foot-Mounted
  • Base RPM 930
  • IEC Frame Size 71 A
  • Shaft Diameter 14 mm
  • Mounting Position B3
  • Group Code Techtop-TML-0.18kw
  • Type Single Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 240 V
  • Rated Load (kW) 0.18
  • Rated Load (HP) 1/4
  • Series Techtop TML
  • AC Phase Single Phase
  • Current Type AC
SKU: A0097952

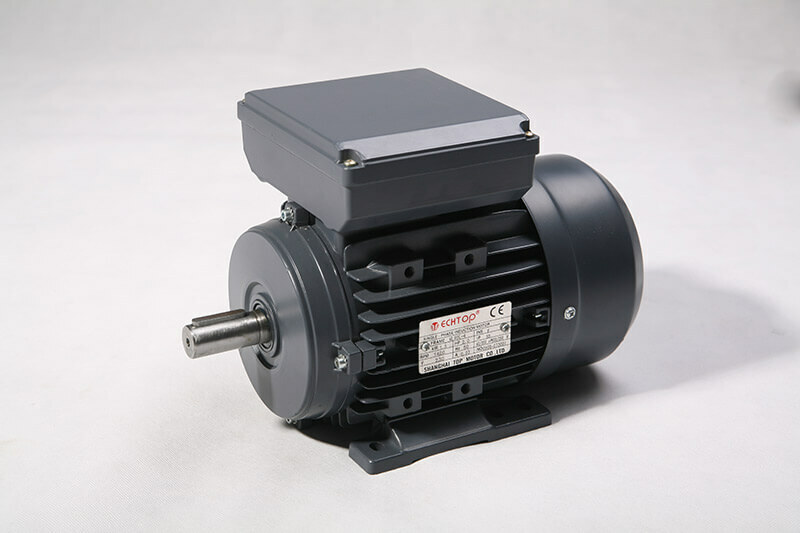

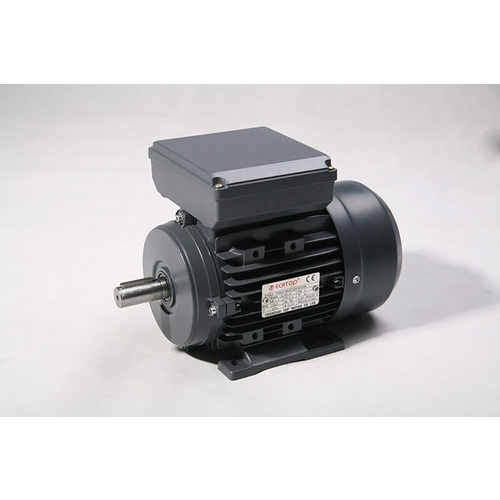

TechTop 0.18kW 1/4 HP Motor 240V 1 Phase 6 Pole, 930 RPM, Foot Mount TA6A0183TML

240V Single Phase Cap Start/Cap Run Motor (TA6A0183TML)

$239.83
