Specifications
- AIMS SKU A0097836
- Brand TechTop
- Model Number TA2A0256TMY
- Poles 2
- Mounting Type Foot & Flange Mounted
- Base RPM 2780
- IEC Frame Size 63 B
- Shaft Diameter 11 mm
- Mounting Position B3,B14A
- Group Code Techtop-TMY-0.25kw
- Type Single Phase
- Material Aluminium
- Nominal Rated Input Voltage 240 V
- Rated Load (kW) 0.25
- Rated Load (HP) 1/3
- Series Techtop TMY
- AC Phase Single Phase
- Current Type AC
SKU: A0097836

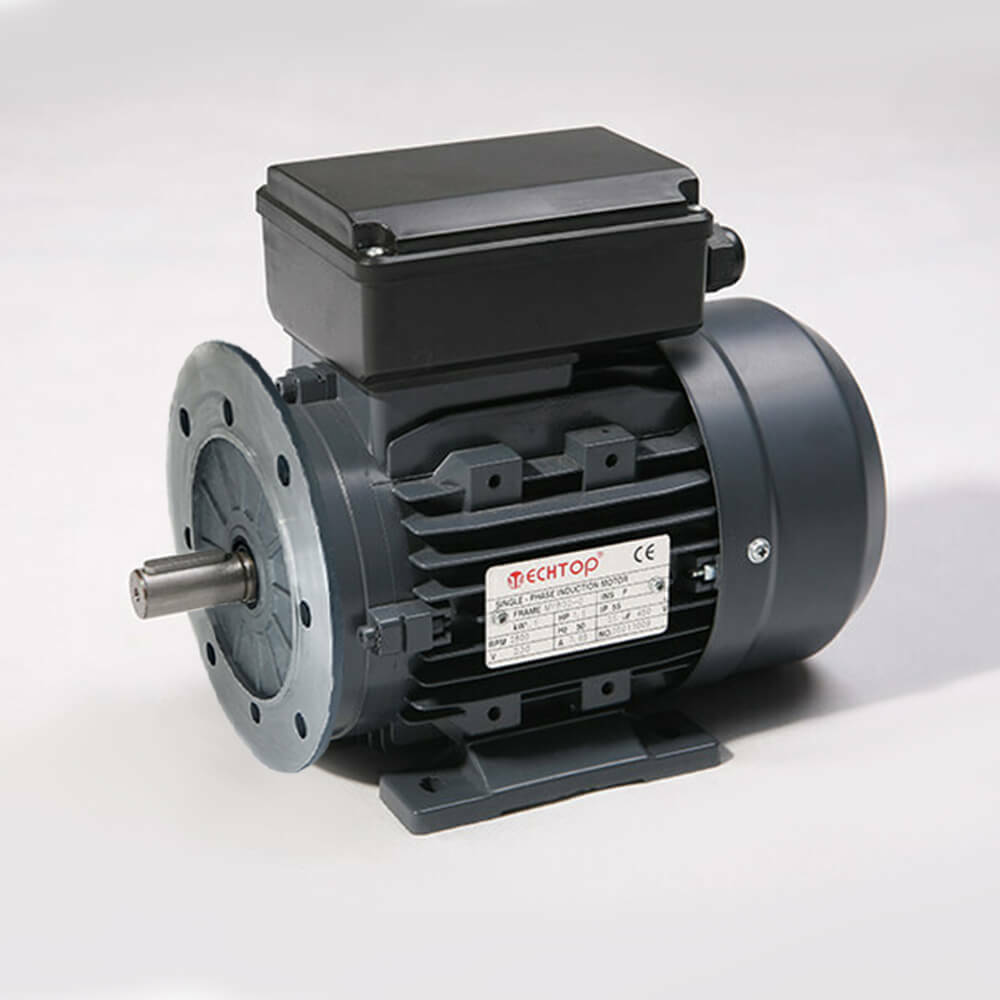

TechTop 0.25kW 1/3 HP Motor 1 Phase 2 Pole, 2780 RPM, Foot & Flange TA2A0256TMY
240V Permanent Split Capacitor Motor (TA2A0256TMY)
$183.93
