Description

TechTop’s TML series AC induction motors are ideally suited for all general purpose applications where starting torque performance and low weight are key factors.

The TechTop TML series electric motor's flexibility in mounting arrangements makes it a perfect fit for aluminium gearbox applications.

Motors up to 2.2kW are fitted with manual reset overload

Specifications

  • AIMS SKU A0098103
  • Brand TechTop
  • Model Number TA6A0258TML
  • Poles 6
  • Mounting Type Foot & Flange Mounted
  • Base RPM 930
  • IEC Frame Size 71B
  • Shaft Diameter 14 mm

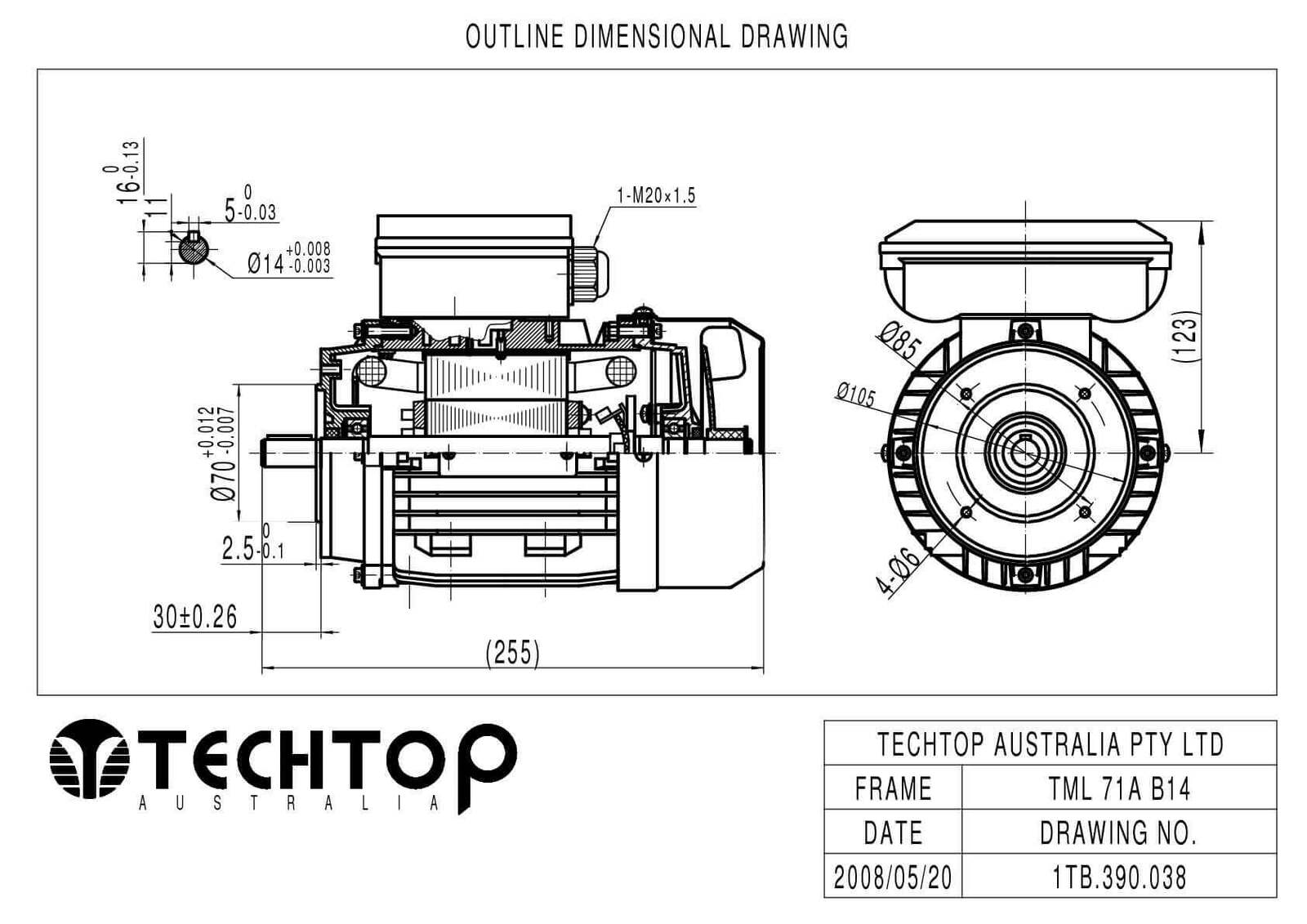

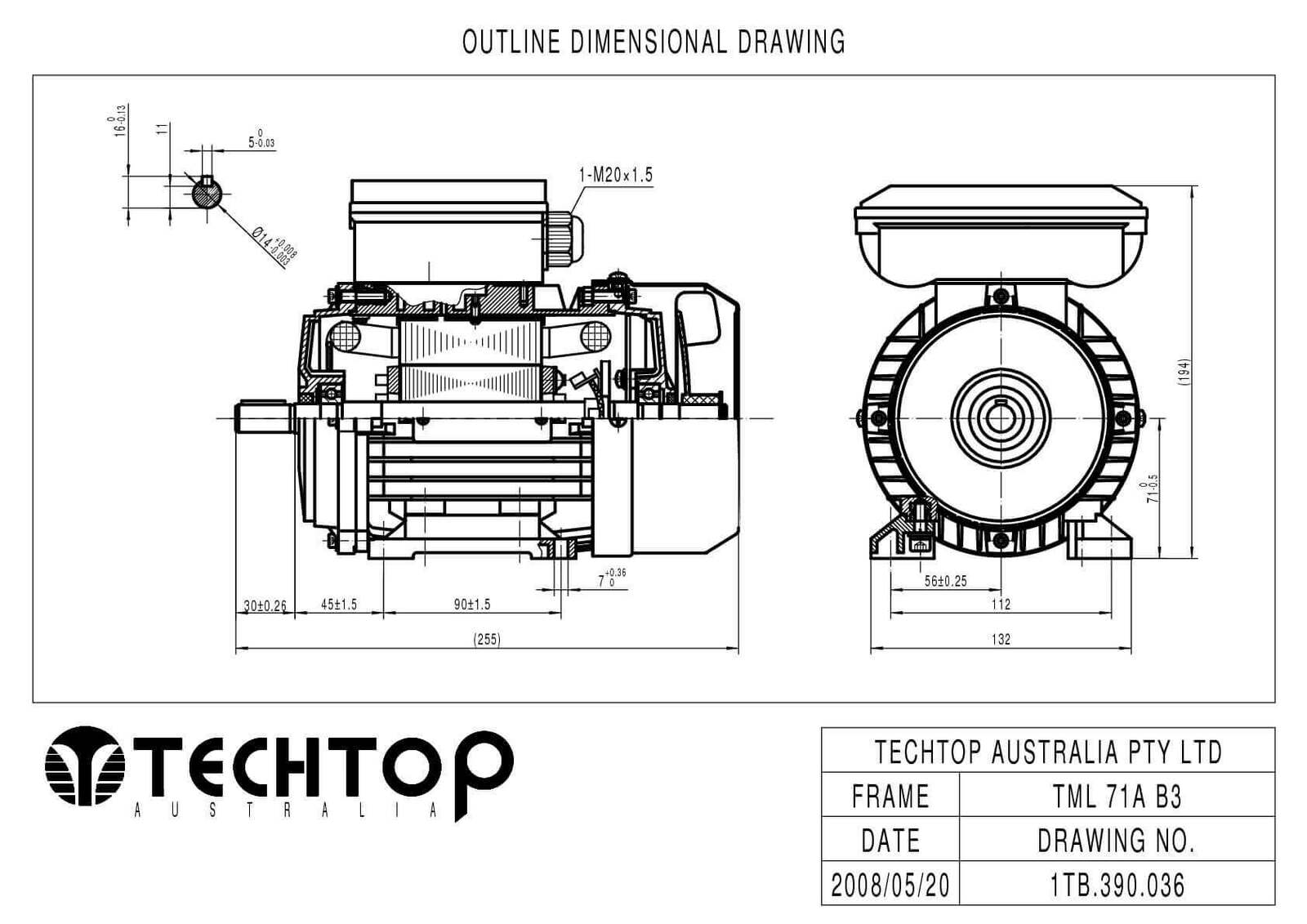

  • Mounting Position B3,B14B
  • Group Code Techtop-TML-0.25kw
  • Type Single Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 240 V
  • Rated Load (kW) 0.25
  • Rated Load (HP) 1/3
  • Series Techtop TML
  • AC Phase Single Phase
  • Current Type AC
SKU: A0098103

TechTop 0.25kW 1/3 HP Motor 240V 1 Phase 6 Pole, 930 RPM, Foot & Flange TA6A0258TML

240V Single Phase Cap Start/Cap Run Motor (TA6A0258TML)

$306.56
