Description

TechTop’s TAIB aluminium series AC induction motors are suitable for all industrial applications where optimal design performance and low weight are key factors.

TAIB braked motors are fitted with Intorq brand direct current brakes and are “fail to safe” design, as the brake will engage when the power is disconnected.

All TechTop TAIB series electric motors are fitted with an emergency hand release.

As standard, TechTop’s TAI series are fitted with detachable feet allowing for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Specifications

  • AIMS SKU A0098956
  • Brand TechTop
  • Model Number TA4A0379TAIBHR
  • Poles 4
  • Mounting Type Flange-Mounted
  • Base RPM 1370

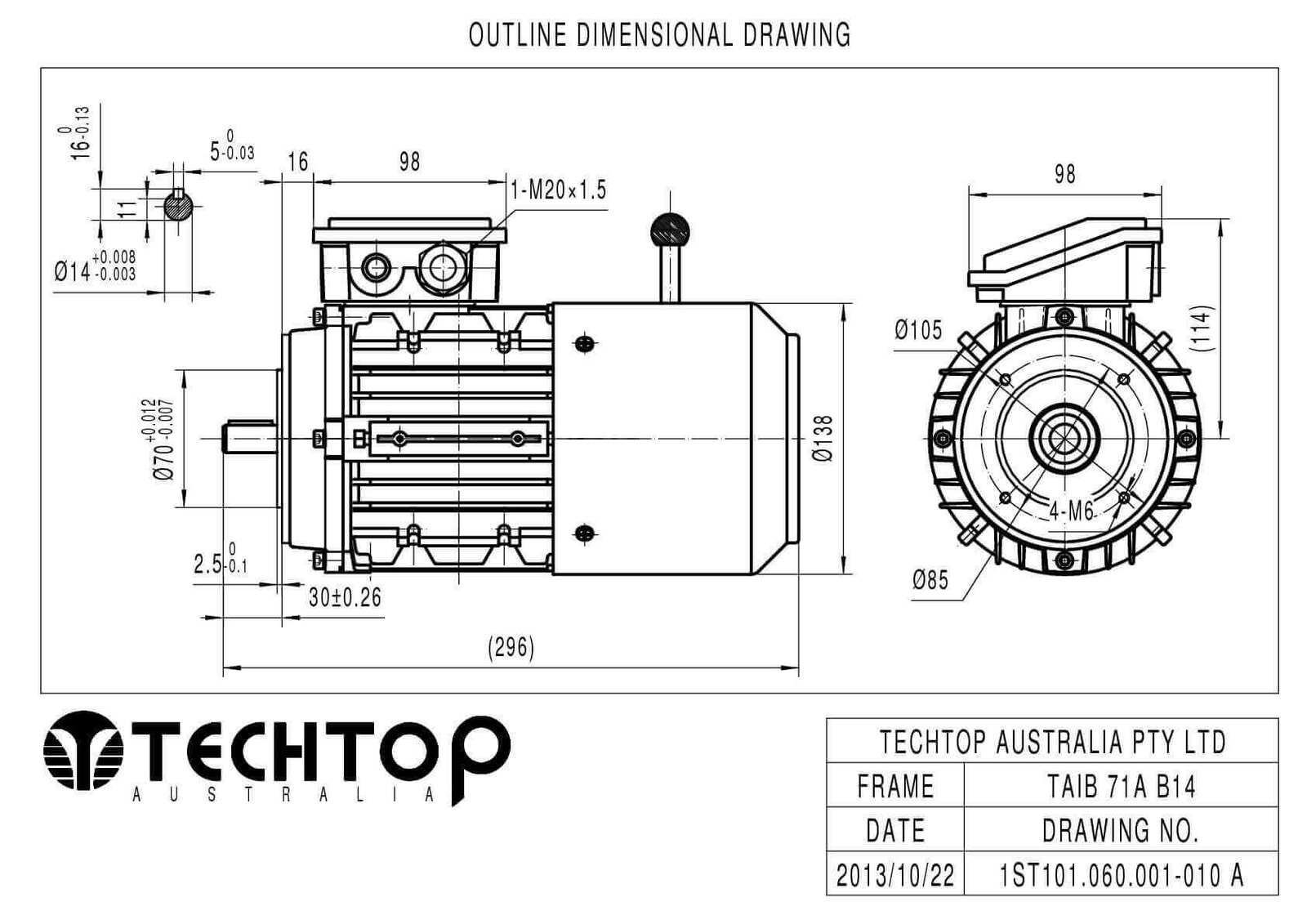

  • IEC Frame Size 71 B
  • Shaft Diameter 14 mm
  • Mounting Position B14B
  • Group Code Techtop-TAIB-0.37kw
  • Type Three Phase with Brake
  • Material Aluminium
  • Nominal Rated Input Voltage 415 V
  • Rated Load (kW) 0.37
  • Rated Load (HP) 1/2
  • Series Techtop TAIB
  • AC Phase Three Phase
  • Current Type AC
SKU: A0098956

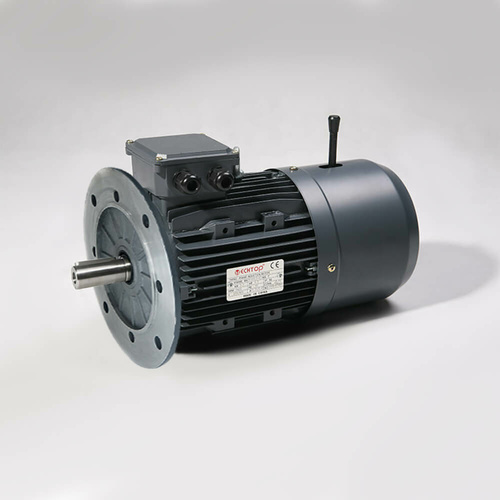

TechTop 0.37kW 1/2 HP Motor 415V 3 Phase 4 Pole, 1370 RPM, Flange Mount TA4A0379TAIBHR

415V Three Phase Aluminium Brake Motor (TA4A0379TAIBHR)

$712.29
