TechTop’s TML series AC induction motors are ideally suited for all general purpose applications where starting torque performance and low weight are key factors.

The TechTop TML series electric motor's flexibility in mounting arrangements makes it a perfect fit for aluminium gearbox applications.

Motors up to 2.2kW are fitted with manual reset overload

Specifications

  • AIMS SKU A0098078
  • Brand TechTop
  • Model Number TA6A0377TML
  • Poles 6
  • Mounting Type Flange-Mounted
  • Base RPM 935

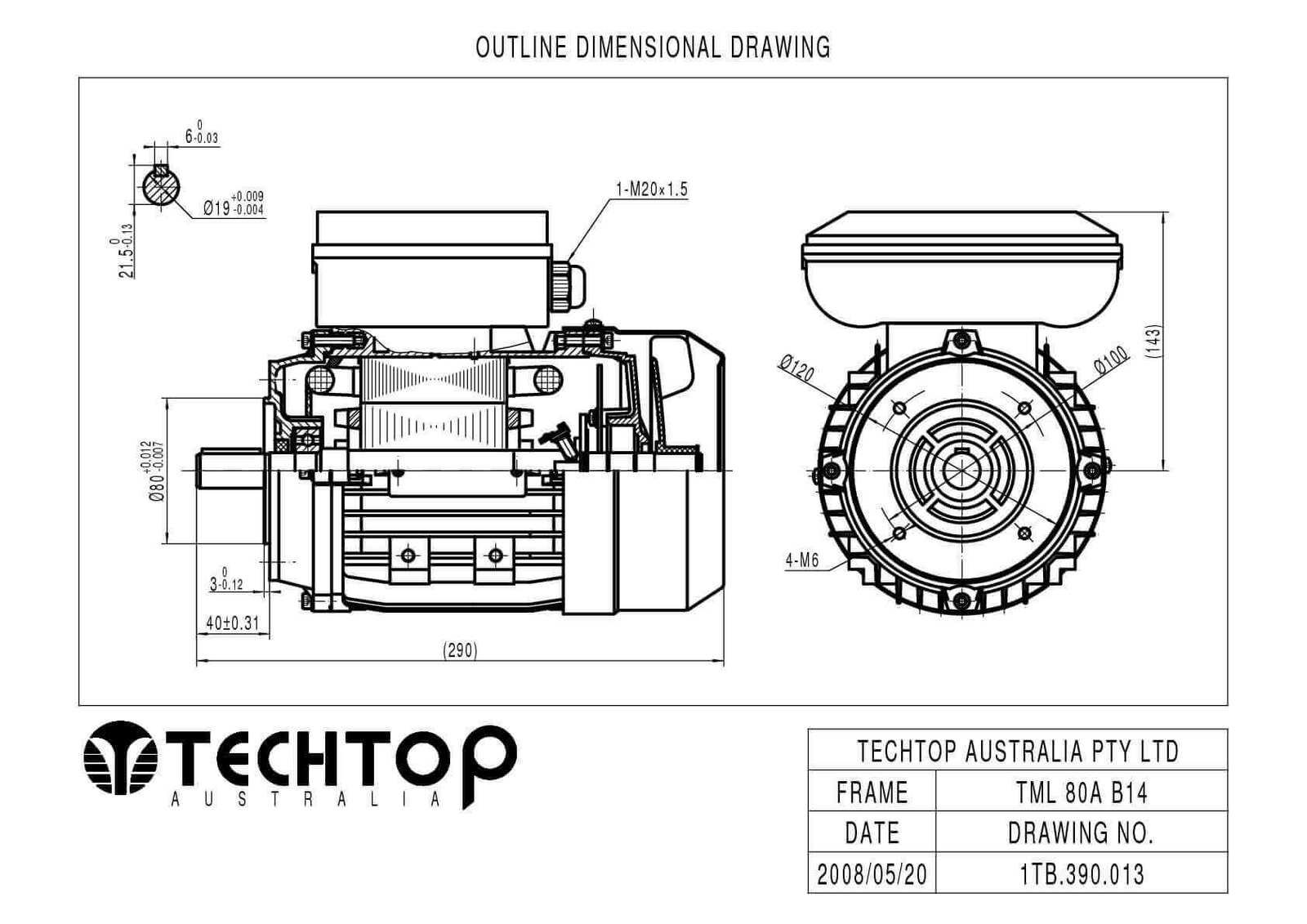

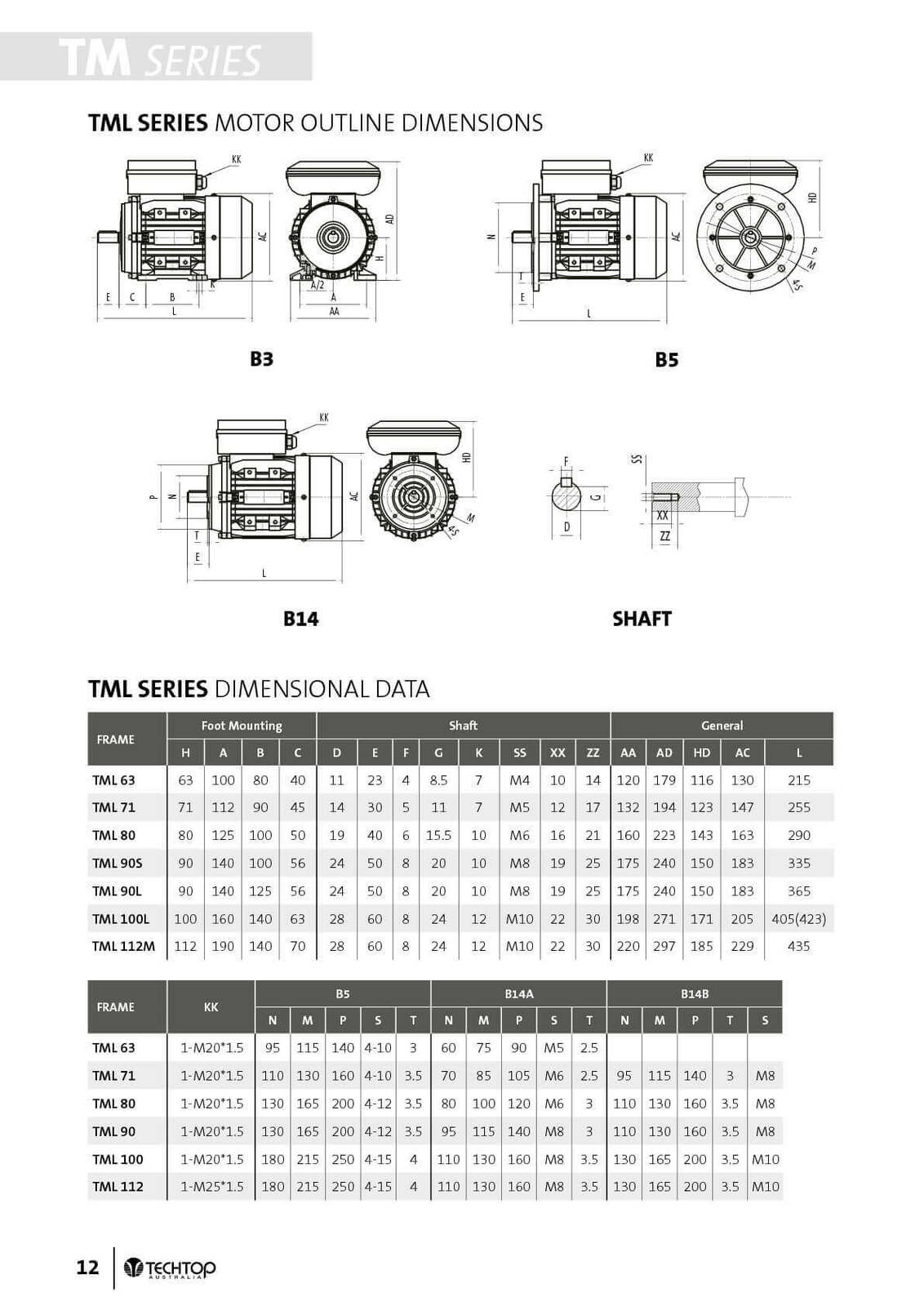

  • IEC Frame Size 80 A
  • Shaft Diameter 19 mm
  • Mounting Position B14A
  • Group Code Techtop-TML-0.37kw
  • Type Single Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 240 V
  • Rated Load (kW) 0.37
  • Rated Load (HP) 1/2
  • Series Techtop TML
  • AC Phase Single Phase
  • Current Type AC
SKU: A0098078

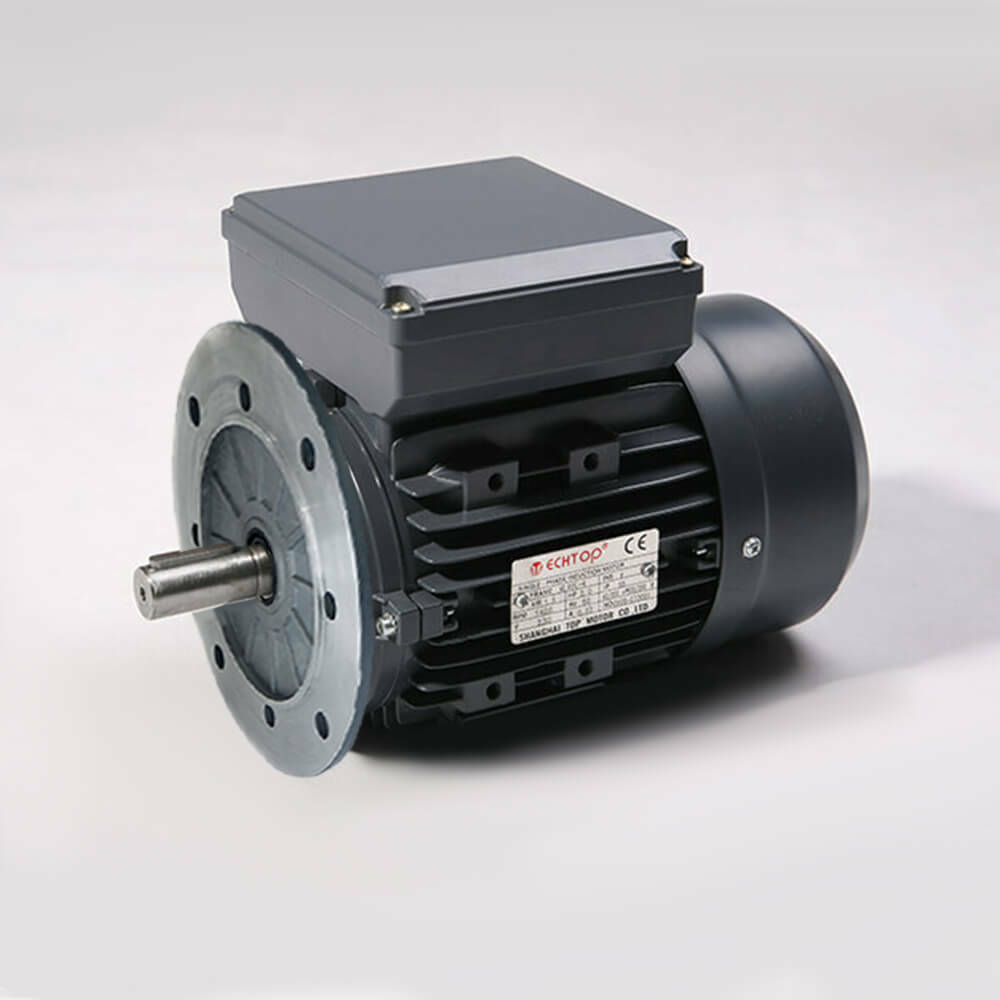

TechTop 0.37kW 1/2 HP Motor 240V 1 Phase 6 Pole, 935 RPM, Flange Mount TA6A0377TML

240V Single Phase Cap Start/Cap Run Motor (TA6A0377TML)

$349.83
