TechTop’s TAI aluminium series AC induction motors are suitable for all industrial applications where optimal design performance and low weight are key factors.

As standard, TechTop’s TAI series electric motors are fitted with detachable feet allowing for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Minimum Energy Performance Standards (MEPS) Compliant

Specifications

  • AIMS SKU A0098197
  • Brand TechTop
  • Model Number TA6A0373TAI
  • Poles 6
  • Mounting Type Foot-Mounted
  • Base RPM 900
  • IEC Frame Size 80 A
  • Shaft Diameter 19 mm
  • Mounting Position B3
  • Group Code Techtop-TAI-0.37kw
  • Type Three Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 415 V
  • Rated Load (kW) 0.37
  • Rated Load (HP) 1/2
  • Series Techtop TAI
  • AC Phase Three Phase
  • Current Type AC
SKU: A0098197

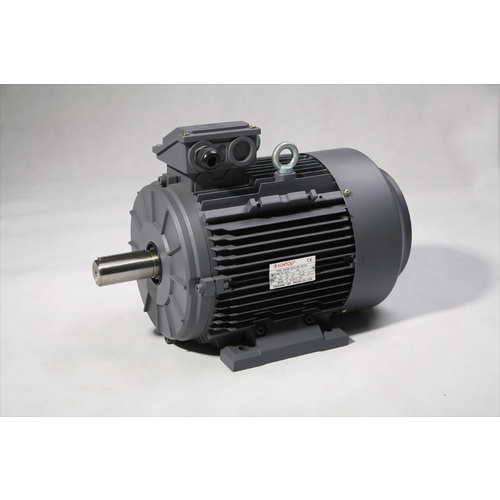

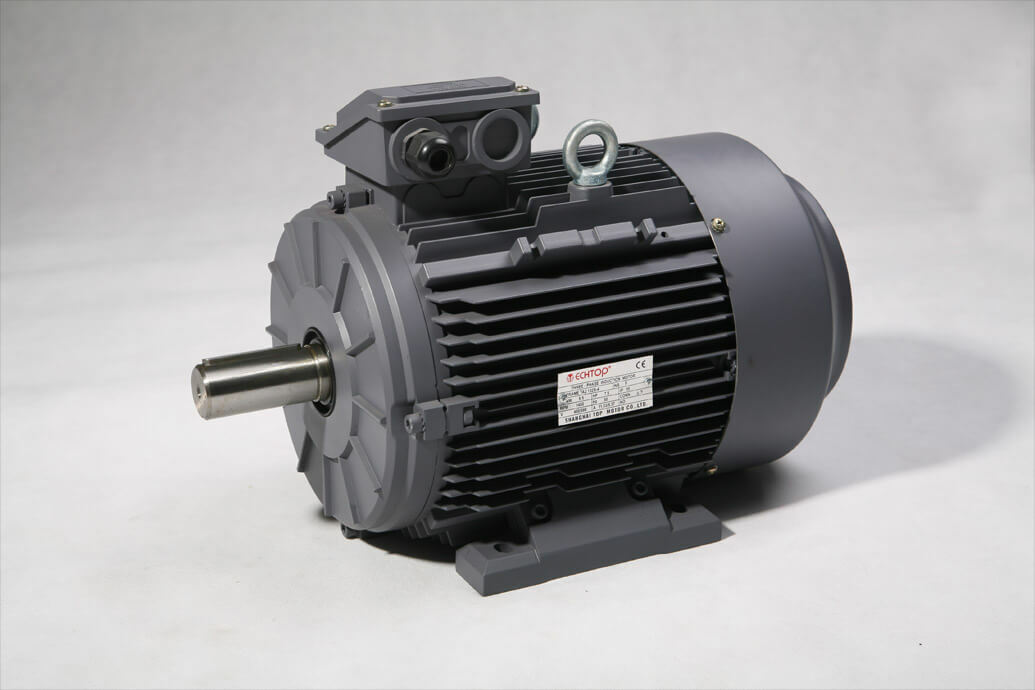

TechTop 0.37kW 1/2 HP Motor 415V 3 Phase 6 Pole, 900 RPM, Foot Mount TA6A0373TAI

415V Three Phase Aluminium Motor (TA6A0373TAI)

$200.17
