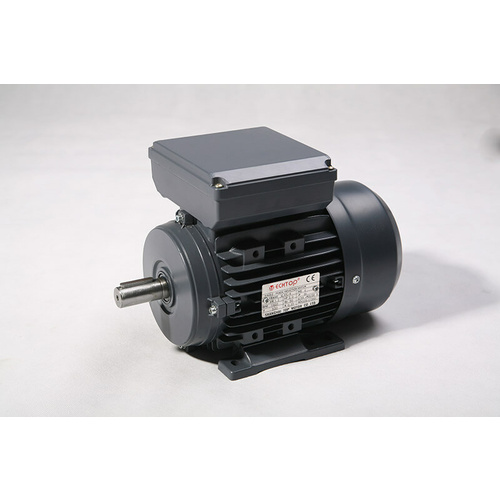

TechTop 0.75kW 1 HP Motor 240V 1 Phase 4 Pole, 1410 RPM, Foot Mount TA4A0753TML

Description

** Lead time is approximately 1-2 working days on the following: 4-Pole, B5 Flange-Mounted Type, and on 2-Pole, B3 and Foot-Mounted type. Please contact AIMS for assistance.".

TechTop’s TML series AC induction motors are ideally suited for all general purpose applications where starting torque performance and low weight are key factors.

The TechTop TML series electric motor's flexibility in mounting arrangements makes it a perfect fit for aluminium gearbox applications.

Motors up to 2.2kW are fitted with manual reset overload

Specifications

AIMS SKU A0097963

Brand TechTop

Model Number TA4A0753TML

Poles 4

Mounting Type Foot-Mounted

Base RPM 1410

IEC Frame Size 80 A

Shaft Diameter 19 mm

Mounting Position B3

Group Code Techtop-TML-0.75kw
Type Single Phase
Material Aluminium
Nominal Rated Input Voltage 240 V
Rated Load (kW) 0.75
Rated Load (HP) 1
Series Techtop TML
AC Phase Single Phase
Current Type AC
