Description

 ** Lead time is approximately 1-2 working days on the following: 4-Pole, B5 Flange-Mounted Type, and on 2-Pole, B3 and Foot-Mounted type.   Please contact AIMS for assistance.".

TechTop’s TML series AC induction motors are ideally suited for all general purpose applications where starting torque performance and low weight are key factors.

The TechTop TML series electric motor's flexibility in mounting arrangements makes it a perfect fit for aluminium gearbox applications.

Motors up to 2.2kW are fitted with manual reset overload

Specifications

  • AIMS SKU A0097964
  • Brand TechTop
  • Model Number TA6A0753TML
  • Poles 6
  • Mounting Type Foot-Mounted
  • Base RPM 945
  • IEC Frame Size 90 S
  • Shaft Diameter 24 mm
  • Mounting Position B3
  • Group Code Techtop-TML-0.75kw
  • Type Single Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 240 V
  • Rated Load (kW) 0.75
  • Rated Load (HP) 1
  • Series Techtop TML
  • AC Phase Single Phase
  • Current Type AC
SKU: A0097964

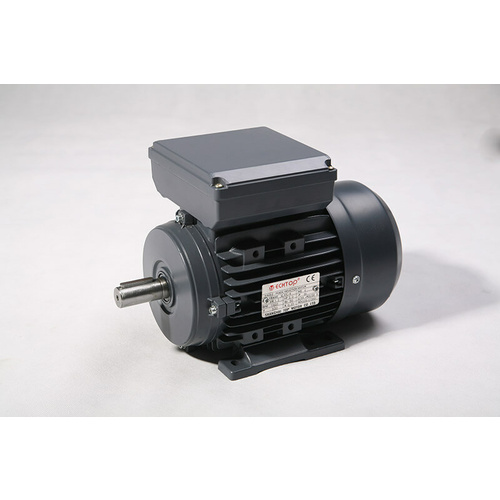

TechTop 0.75kW 1 HP Motor 240V 1 Phase 6 Pole, 945 RPM, Foot Mount TA6A0753TML

240V Single Phase Cap Start/Cap Run Motor (TA6A0753TML)

$441.80
