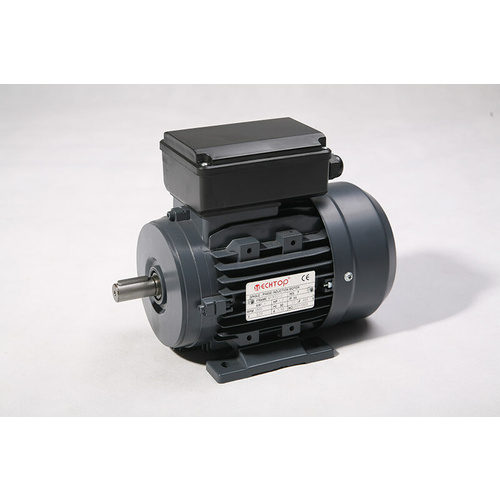

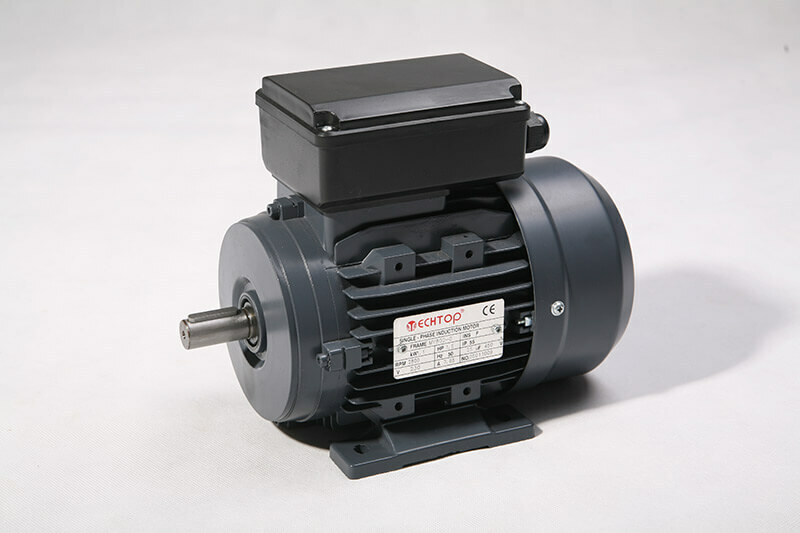

TechTop 0.75kW 1 HP Motor 240V 1 Phase 6 Pole, 905 RPM, Foot Mount TA6A0753TMY

Description

**Lead time is approximately 1 week on 6-Pole, B3-B14B Mounting Position and Foot/Flange Mounting type. **

TechTop’s TMY series AC induction motors are ideally suited for fan and pump applications where performance and low weight are key factors

The multi-mount design of TechTop’s TMY series electric motor allows for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Specifications

AIMS SKU A0097754

Brand TechTop

Model Number TA6A0753TMY

Poles 6

Mounting Type Foot-Mounted

Base RPM 905

IEC Frame Size 90 S

Shaft Diameter 24 mm

Mounting Position B3

Group Code Techtop-TMY-0.75kw
Type Single Phase
Material Aluminium
Nominal Rated Input Voltage 240 V
Rated Load (kW) 0.75
Rated Load (HP) 1
Series Techtop TMY
AC Phase Single Phase
Current Type AC
