Description

Permanent Split Capacitor Motor

  • TechTop's TMY series AC induction motors are ideally suited for fan and pump applications where performance and low weight are key factors
  • The multi-mount design of TechTop's TMY series electric motor allows for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Specifications

  • AIMS SKU A0097849
  • Brand TechTop
  • Model Number TA4B0116TMY
  • Poles 4
  • Mounting Type Foot & Flange Mounted
  • Base RPM 1410
  • IEC Frame Size 90 S
  • Shaft Diameter 24 mm
  • Mounting Position B3,B14A
  • Group Code Techtop-TMY-1.1kw
  • Type Single Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 240 V
  • Rated Load (kW) 1.1
  • Rated Load (HP) 1 1/2
  • Series Techtop TMY
  • AC Phase Single Phase
  • Current Type AC
SKU: A0097849

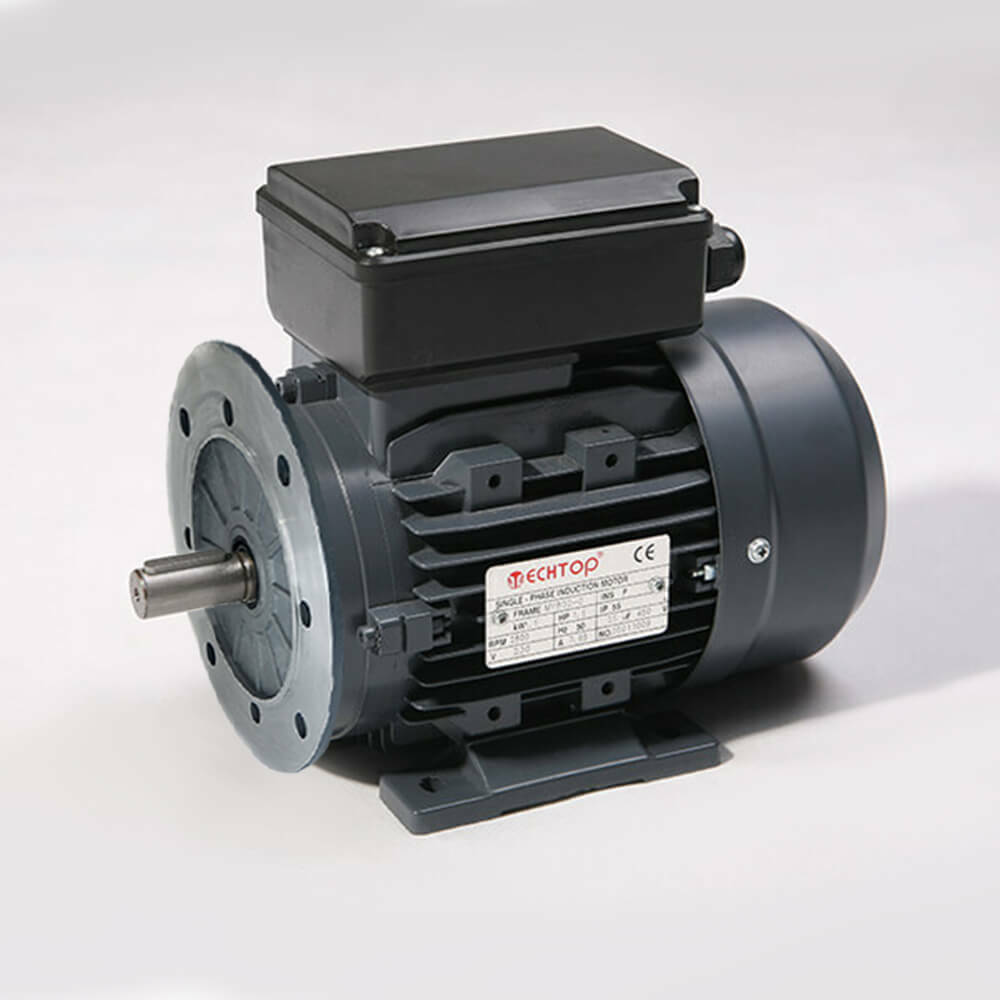

TechTop 1.1kW 1 1/2 HP Motor 1 Phase 4 Pole, 1410 RPM, Foot & Flange TA4B0116TMY

240V Permanent Split Capacitor Motor (TA4B0116TMY)

$387.71
