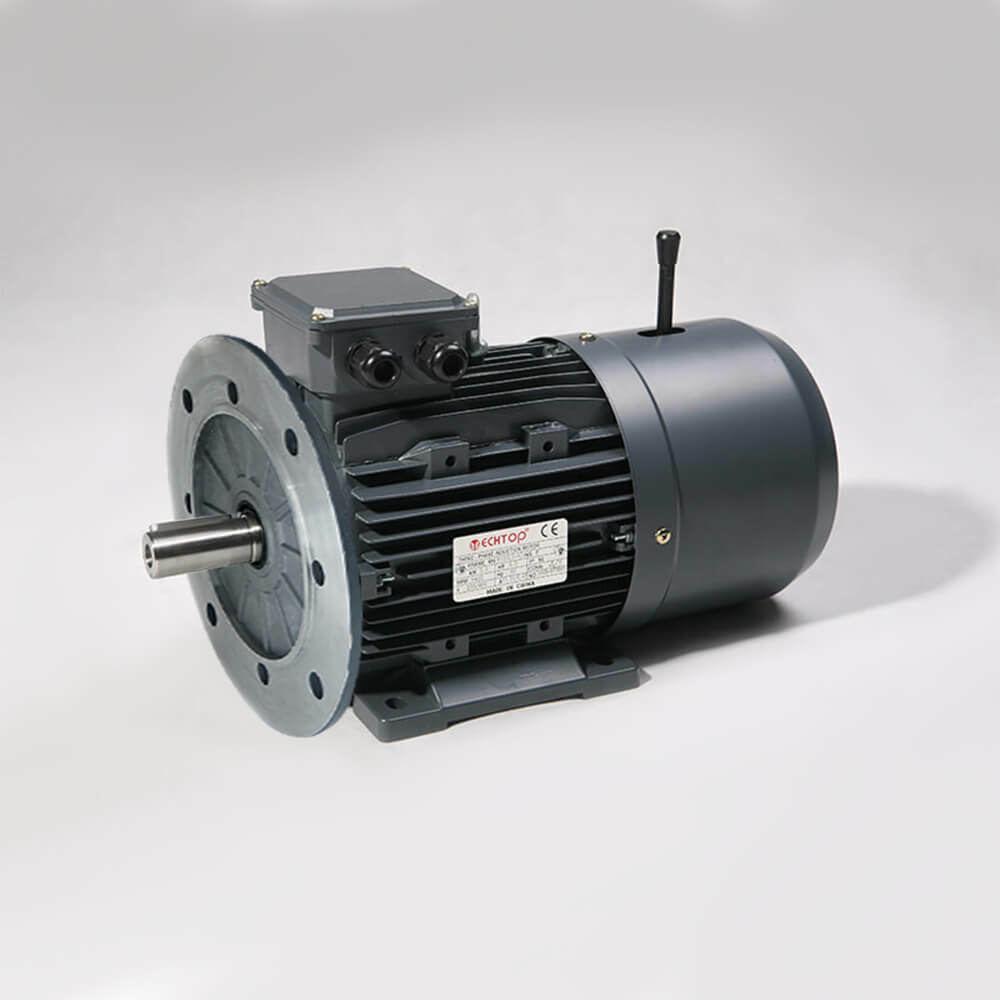

TechTop 1.5kW 2 HP Motor 415V 3 Phase 4 Pole, 1440 RPM, Foot & Flange TA4B0156TAIBHR

Description

TechTop’s TAIB aluminium series AC induction motors are suitable for all industrial applications where optimal design performance and low weight are key factors.

TAIB braked motors are fitted with Intorq brand direct current brakes and are “fail to safe” design, as the brake will engage when the power is disconnected.

All TechTop TAIB series electric motors are fitted with an emergency hand release.

As standard, TechTop’s TAI series are fitted with detachable feet allowing for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Specifications

AIMS SKU A0098927

Brand TechTop

Model Number TA4B0156TAIBHR

Poles 4

Mounting Type Foot & Flange Mounted

Base RPM 1440

IEC Frame Size 90 L

Shaft Diameter 24 mm

Mounting Position B3,B14A

Group Code Techtop-TAIB-1.5kw
Type Three Phase with Brake
Material Aluminium
Nominal Rated Input Voltage 415 V
Rated Load (kW) 1.5
Rated Load (HP) 2
Series Techtop TAIB
AC Phase Three Phase
Current Type AC
