Description

***Special order on [A0099294 and A0099196]. Contact AIMS for assistance.***

TechTop’s TCI cast iron series motors combine superior electrical characteristics, high quality design and the robust strength of cast iron. This AC induction motor is ideal for all industrial applications.

A unique feature of the TCI series electric motor is its multi-mount design up to 280 frame, allowing for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Minimum Energy Performance Standards (MEPS) Compliant

Specifications

  • AIMS SKU A0099000
  • Brand TechTop
  • Model Number TC4B0153TCI
  • Poles 4
  • Mounting Type Foot-Mounted
  • Base RPM 1440

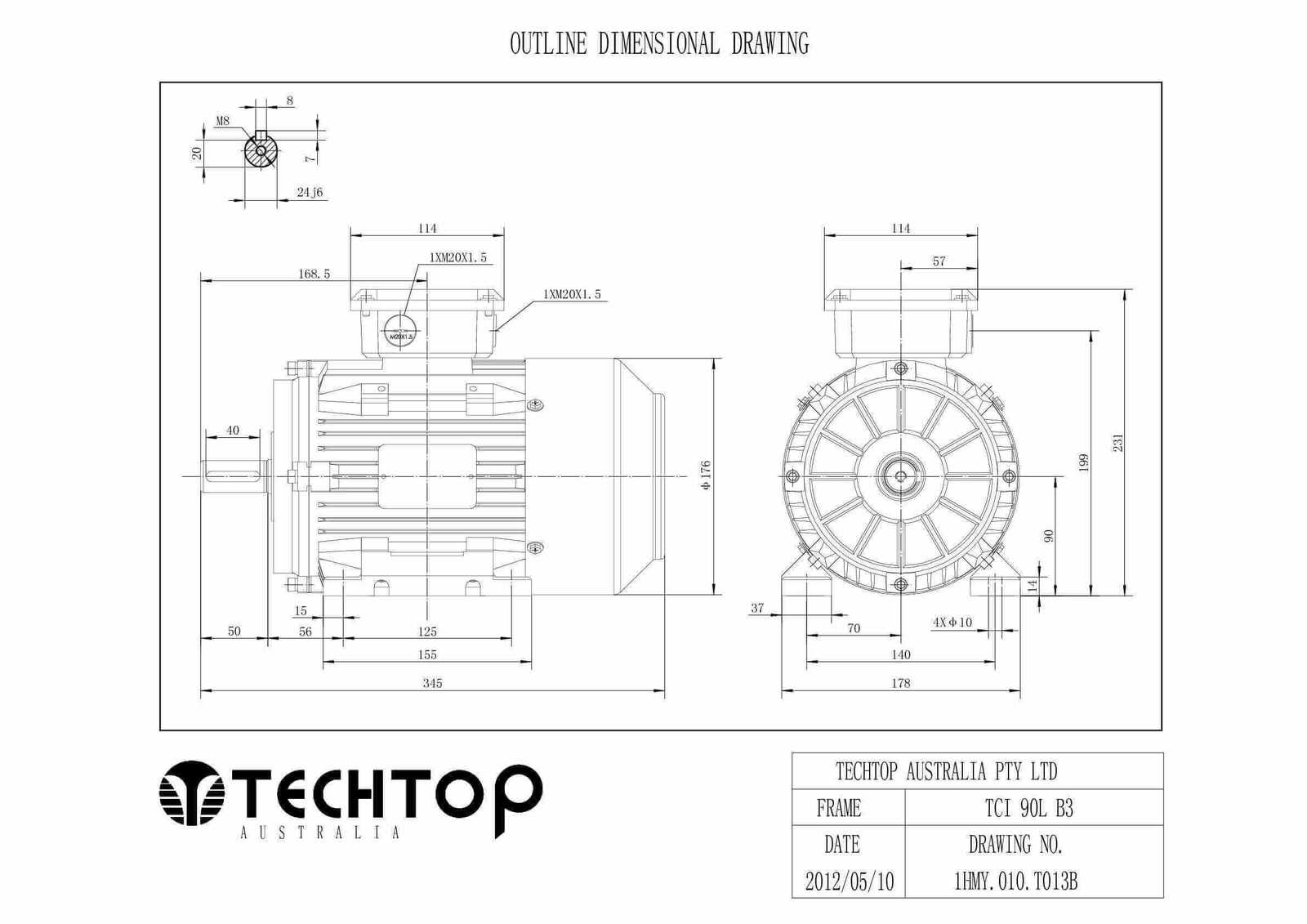

  • IEC Frame Size 90 L
  • Shaft Diameter 24 mm
  • Mounting Position B3
  • Group Code Techtop-TCI-1.5kw
  • Type Three Phase
  • Material Cast Iron
  • Nominal Rated Input Voltage 415 V
  • Rated Load (kW) 1.5
  • Rated Load (HP) 2
  • Series Techtop TCI
  • AC Phase Three Phase
  • Current Type AC
SKU: A0099000

TechTop 1.5kW 2 HP Motor 415V 3 Phase 4 Pole, 1440 RPM, Foot Mount TC4B0153TCI

415V Three Phase Cast Iron Motor (TC4B0153TCI)

$382.29
