Description

TechTop’s TML series AC induction motors are ideally suited for all general purpose applications where starting torque performance and low weight are key factors.

The TechTop TML series electric motor's flexibility in mounting arrangements makes it a perfect fit for aluminium gearbox applications.

Motors up to 2.2kW are fitted with manual reset overload

Specifications

  • AIMS SKU A0098159
  • Brand TechTop
  • Model Number TA4B0225TML/480
  • Poles 4
  • Mounting Type Flange-Mounted
  • Base RPM 1430
  • IEC Frame Size 100 LA
  • Shaft Diameter 28 mm
  • Mounting Position B5
  • Group Code Techtop-TML4-2.2kw
  • Type Single Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 240 V,480 V
  • Rated Load (kW) 2.2
  • Rated Load (HP) 3
  • Series Techtop TML
  • AC Phase Single Phase
  • Current Type AC
SKU: A0098159

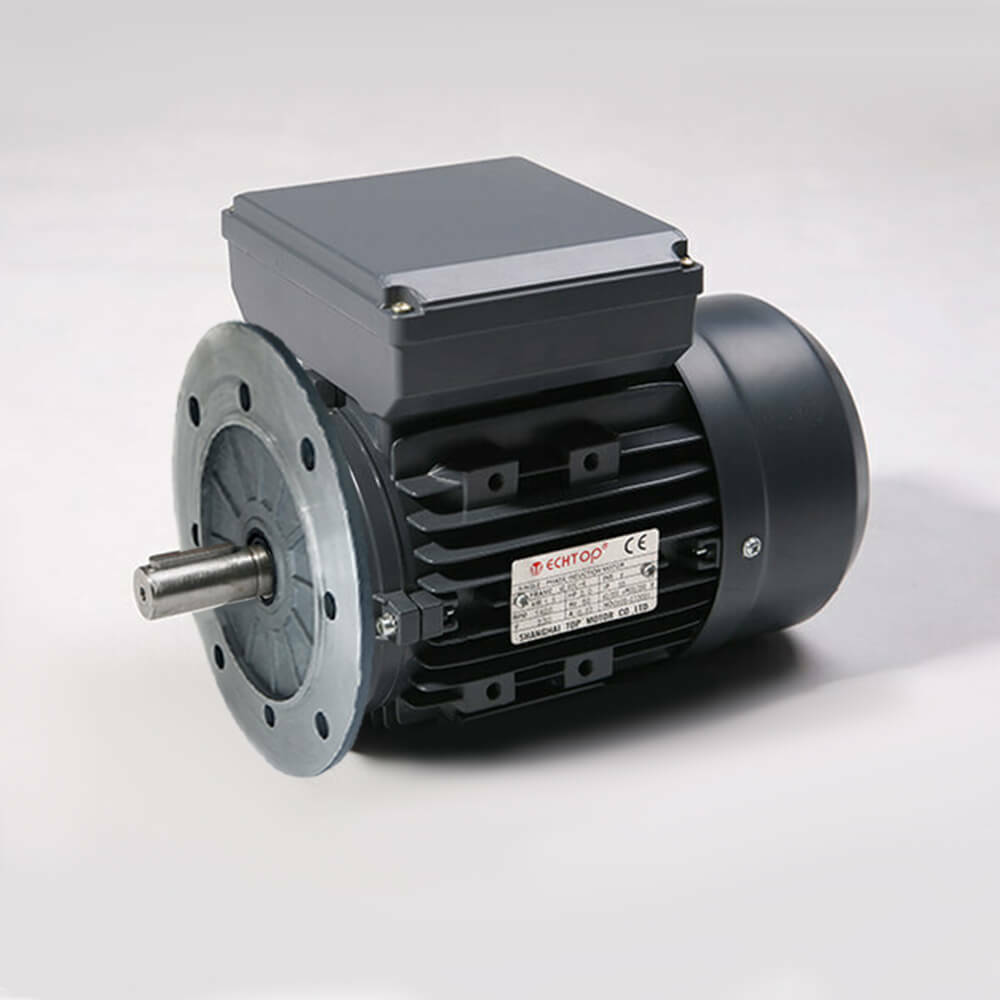

TechTop 2.2kW 3 HP Motor 240/480V Dual Voltage 4 Pole 1430RPM Flange TA4B0225TML

Dual Voltage Cap Start/Cap Run Motor (TA4B0225TML/480)

$697.87
