Description

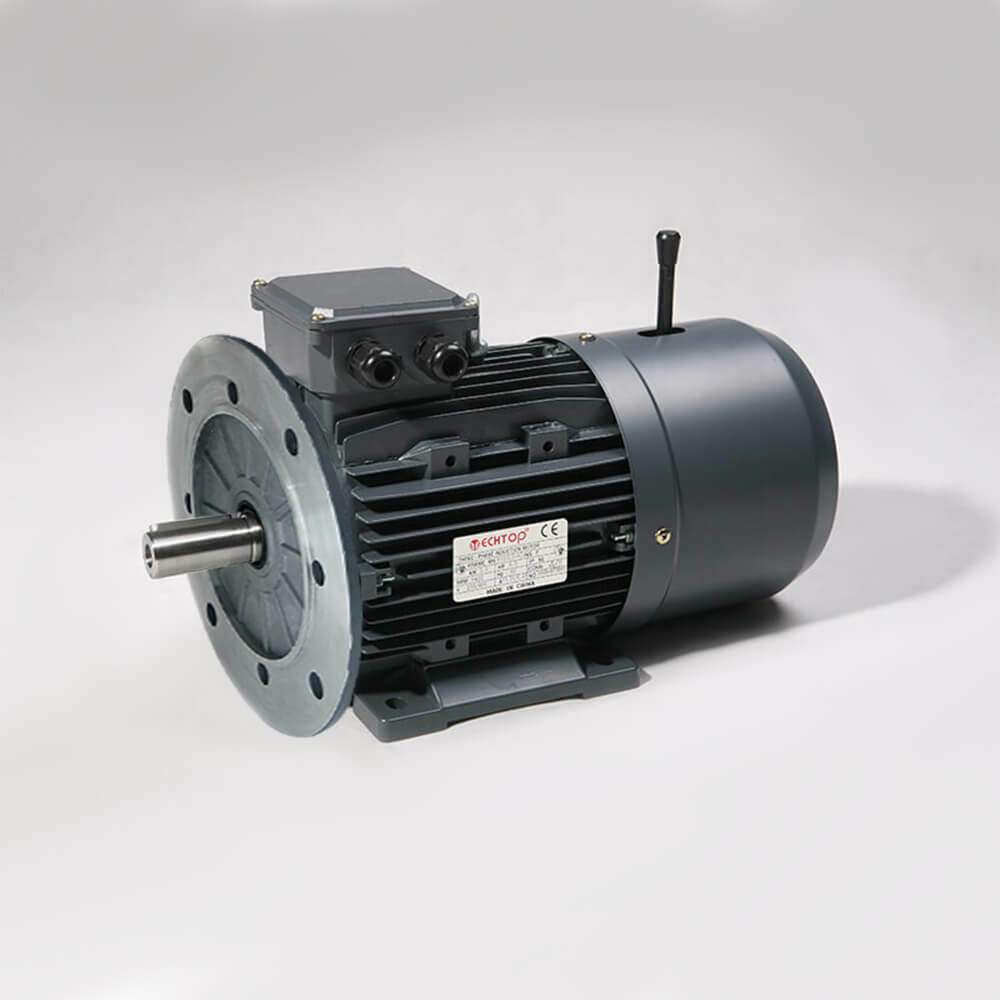

TechTop’s TAIB aluminium series AC induction motors are suitable for all industrial applications where optimal design performance and low weight are key factors.

TAIB braked motors are fitted with Intorq brand direct current brakes and are “fail to safe” design, as the brake will engage when the power is disconnected.

All TechTop TAIB series electric motors are fitted with an emergency hand release.

As standard, TechTop’s TAI series are fitted with detachable feet allowing for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Specifications

  • AIMS SKU A0098906
  • Brand TechTop
  • Model Number TA4B0224TAIBHR
  • Poles 4
  • Mounting Type Foot & Flange Mounted
  • Base RPM 1440
  • IEC Frame Size 100 LA
  • Shaft Diameter 28 mm
  • Mounting Position B3,B5
  • Group Code Techtop-TAIB-2.2kw
  • Type Three Phase with Brake
  • Material Aluminium
  • Nominal Rated Input Voltage 415 V
  • Rated Load (kW) 2.2
  • Rated Load (HP) 3
  • Series Techtop TAIB
  • AC Phase Three Phase
  • Current Type AC
SKU: A0098906

TechTop 2.2kW 3 HP Motor 415V 3 Phase 4 Pole, 1440 RPM, Foot & Flange TA4B0224TAIBHR

415V Three Phase Aluminium Brake Motor (TA4B0224TAIBHR)

$1,711.31
