Description

Permanent Split Capacitor Motor

  • TechTop's TMY series AC induction motors are ideally suited for fan and pump applications where performance and low weight are key factors
  • The multi-mount design of TechTop's TMY series electric motor allows for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Specifications

  • AIMS SKU A0097791
  • Brand TechTop
  • Model Number TA2B0224TMY
  • Poles 6
  • Mounting Type Foot & Flange Mounted
  • Base RPM 2820
  • IEC Frame Size 90 L
  • Shaft Diameter 24 mm
  • Mounting Position B3,B5
  • Group Code Techtop-TMY-2.2kw
  • Type Single Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 240 V
  • Rated Load (kW) 2.2
  • Rated Load (HP) 3
  • Series Techtop TMY
  • AC Phase Single Phase
  • Current Type AC
SKU: A0097791

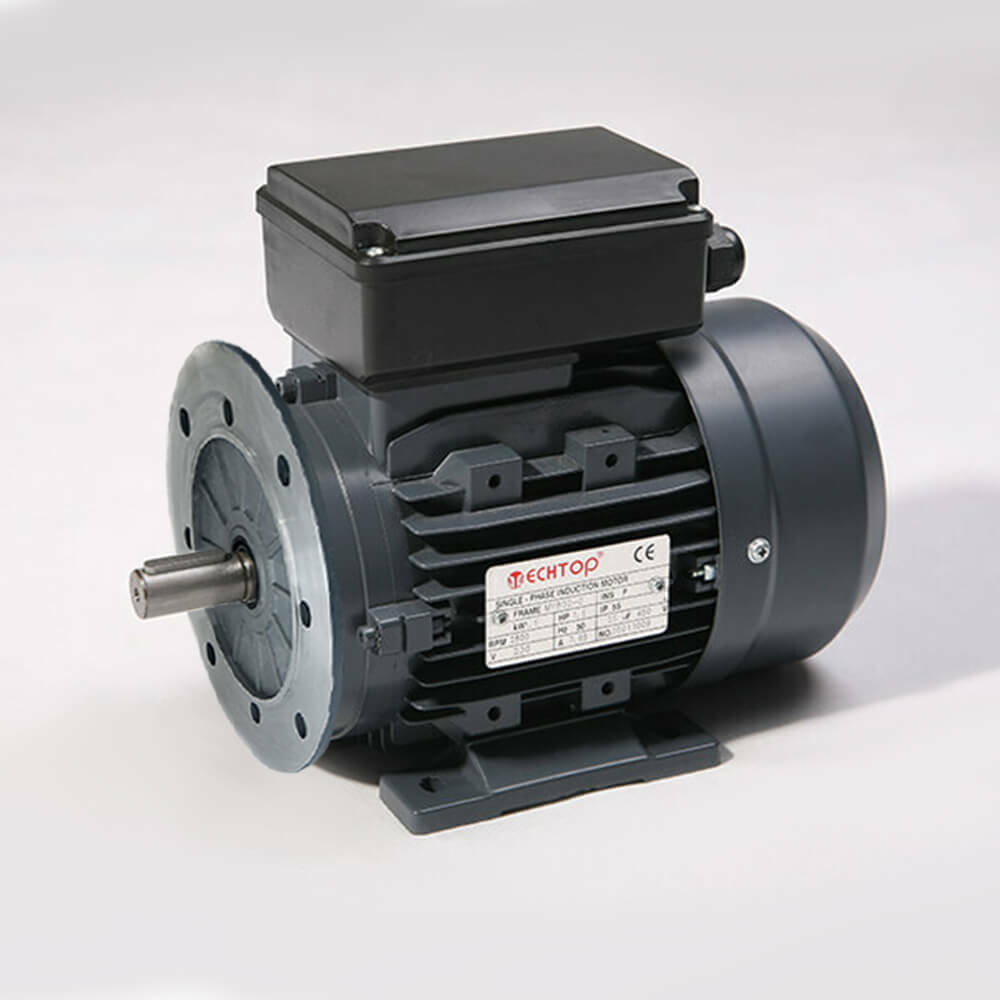

TechTop 2.2kW 3 HP Motor 1 Phase 2 Pole, 2820 RPM, Foot & Flange TA2B0224TMY

240V Permanent Split Capacitor Motor (TA2B0224TMY)
