Description

TechTop’s TML series AC induction motors are ideally suited for all general purpose applications where starting torque performance and low weight are key factors.

The TechTop TML series electric motor's flexibility in mounting arrangements makes it a perfect fit for aluminium gearbox applications.

Motors up to 2.2kW are fitted with manual reset overload

Specifications

  • AIMS SKU A0098121
  • Brand TechTop
  • Model Number TA6B0228TML
  • Poles 6
  • Mounting Type Foot & Flange Mounted
  • Base RPM 965
  • IEC Frame Size 112 M
  • Shaft Diameter 28 mm
  • Mounting Position B3,B14B
  • Group Code Techtop-TML-2.2kw
  • Type Single Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 240 V
  • Rated Load (kW) 2.2
  • Rated Load (HP) 3
  • Series Techtop TML
  • AC Phase Single Phase
  • Current Type AC
SKU: A0098121

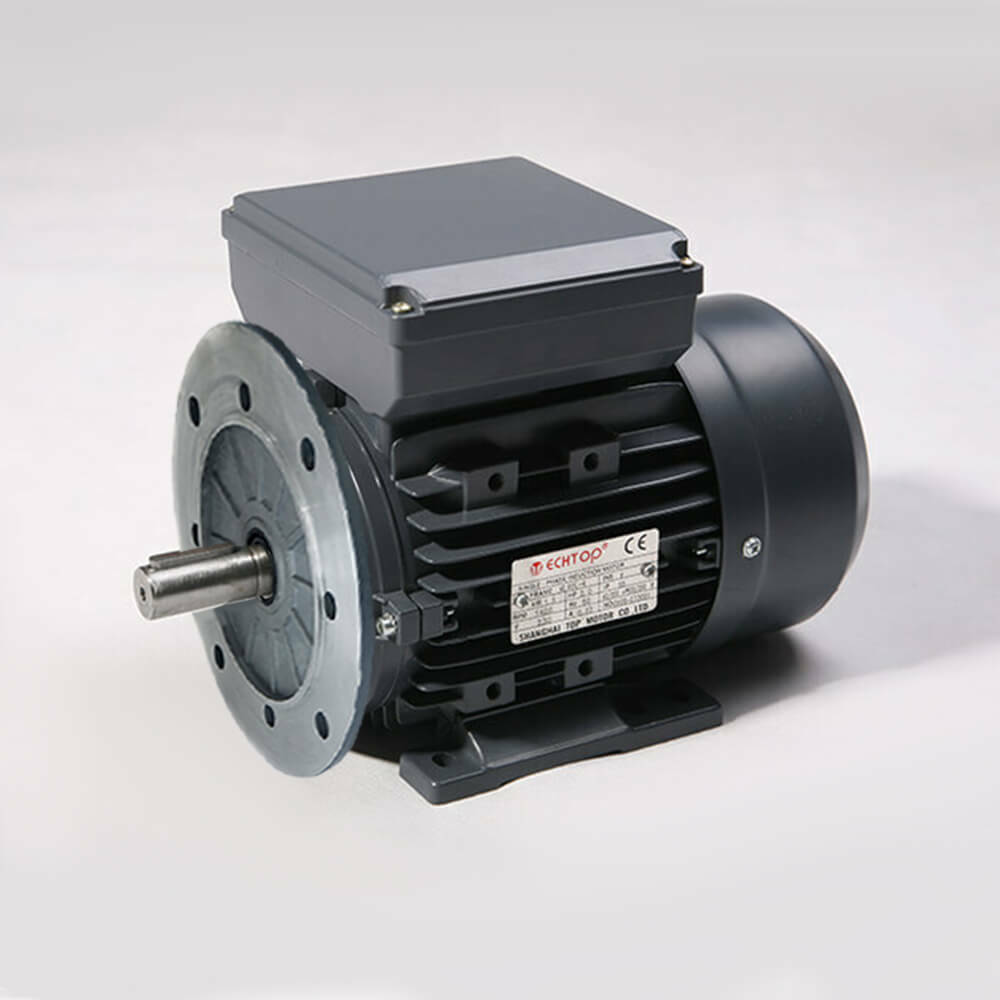

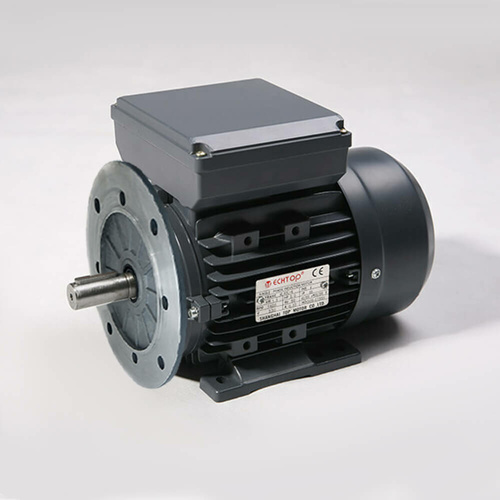

TechTop 2.2kW 3 HP Motor 240V 1 Phase 6 Pole, 965 RPM, Foot & Flange TA6B0228TML

240V Single Phase Cap Start/Cap Run Motor (TA6B0228TML)

$847.54
