Specifications
- AIMS SKU A0097761
- Brand TechTop
- Model Number TA4B0223TMY
- Poles 4
- Mounting Type Foot-Mounted
- Base RPM 1450
- IEC Frame Size 100 LA
- Shaft Diameter 28 mm
- Mounting Position B3
- Group Code Techtop-TMY-2.2kw
- Type Single Phase
- Material Aluminium
- Nominal Rated Input Voltage 240 V
- Rated Load (kW) 2.2
- Rated Load (HP) 3
- Series Techtop TMY
- AC Phase Single Phase
- Current Type AC
SKU: A0097761

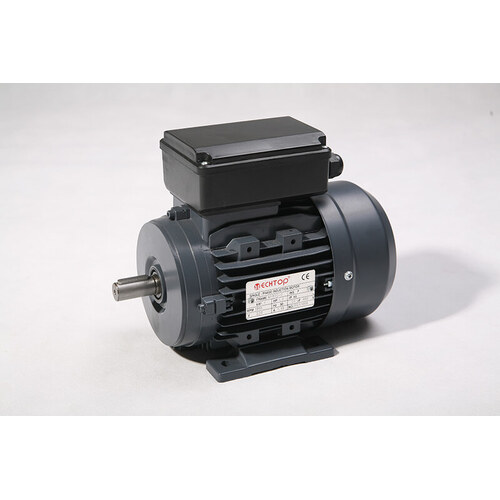

TechTop 2.2kW 3 HP Motor 240V 1 Phase 4 Pole, 1450 RPM, Foot Mount TA4B0223TMY
240V Permanent Split Capacitor Motor (TA4B0223TMY)
$598.69
