Description

***Special Manual Order. Due to variation in shipping costs, please contact Customer Service for a quote specific to your area or requirement.***

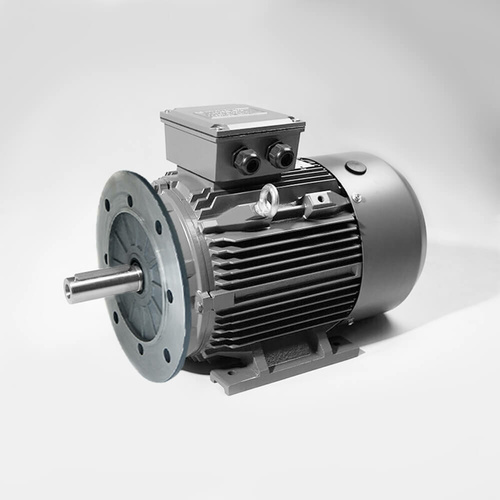

415V Three Phase Cast Iron Motor

  • TechTop TCI cast iron series motors combine superior electrical characteristics, high quality design and the robust strength of cast iron.
  • This AC induction motor is ideal for all industrial applications.
  • A unique feature of the TCI series electric motor is its multi-mount design up to 280 frame, allowing for the motor feet to be repositioned to either side to produce a side mounted terminal box.
  • Minimum Energy Performance Standards (MEPS) Compliant

Specifications

  • AIMS SKU A0099372
  • Brand TechTop
  • Model Number TC4D2006TCI
  • Poles 4
  • Mounting Type Foot & Flange Mounted
  • Base RPM 1490
  • IEC Frame Size 315 LB
  • Shaft Diameter 80 mm
  • Mounting Position B3,B14A
  • Group Code Techtop-TCI-200kw
  • Type Three Phase
  • Material Cast Iron
  • Nominal Rated Input Voltage 415 V
  • Rated Load (kW) 200
  • Rated Load (HP) 268
  • Series Techtop TCI
  • AC Phase Three Phase
  • Current Type AC
SKU: A0099372

TechTop 200kW 268 HP Motor 415V 3 Phase 4 Pole, 1490 RPM, Foot & Flange TC4D2006TCI

415V Three Phase Cast Iron Motor (TC4D2006TCI)

$17,053.61
