Description

Permanent Split Capacitor Motor

  • TechTop's TMY series AC induction motors are ideally suited for fan and pump applications where performance and low weight are key factors
  • The multi-mount design of TechTop's TMY series electric motor allows for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Specifications

  • AIMS SKU A0097763
  • Brand TechTop
  • Model Number TA4B0303TMY
  • Poles 4
  • Mounting Type Foot-Mounted
  • Base RPM 1450
  • IEC Frame Size 100 LB
  • Shaft Diameter 28 mm
  • Mounting Position B3
  • Group Code Techtop-TMY-3kw
  • Type Single Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 240 V
  • Rated Load (kW) 3
  • Rated Load (HP) 4
  • Series Techtop TMY
  • AC Phase Single Phase
  • Current Type AC
SKU: A0097763

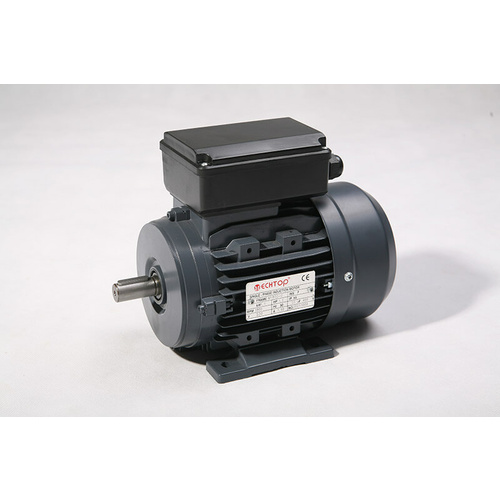

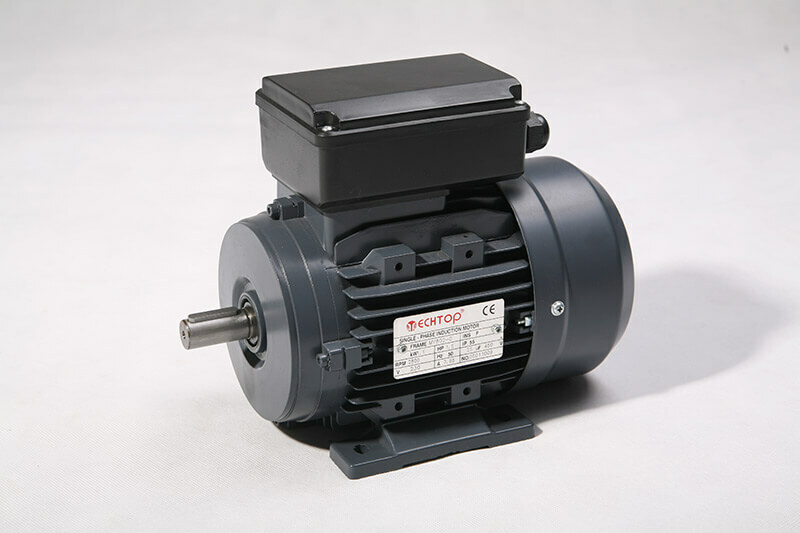

TechTop 3kW 4 HP Motor 240V 1 Phase 4 Pole, 1450 RPM, Foot Mount TA4B0303TMY

240V Permanent Split Capacitor Motor (TA4B0303TMY)

$730.32
5/5 based on 1 review.
