Description

TechTop’s TAI aluminium series AC induction motors are suitable for all industrial applications where optimal design performance and low weight are key factors.

As standard, TechTop’s TAI series electric motors are fitted with detachable feet allowing for the motor feet to be repositioned to either side to produce a side mounted terminal box.

Minimum Energy Performance Standards (MEPS) Compliant

Specifications

  • AIMS SKU A0098861
  • Brand TechTop
  • Model Number TA2B055BTAI1
  • Poles 2
  • Mounting Type Foot & Flange Mounted
  • Base RPM 2920

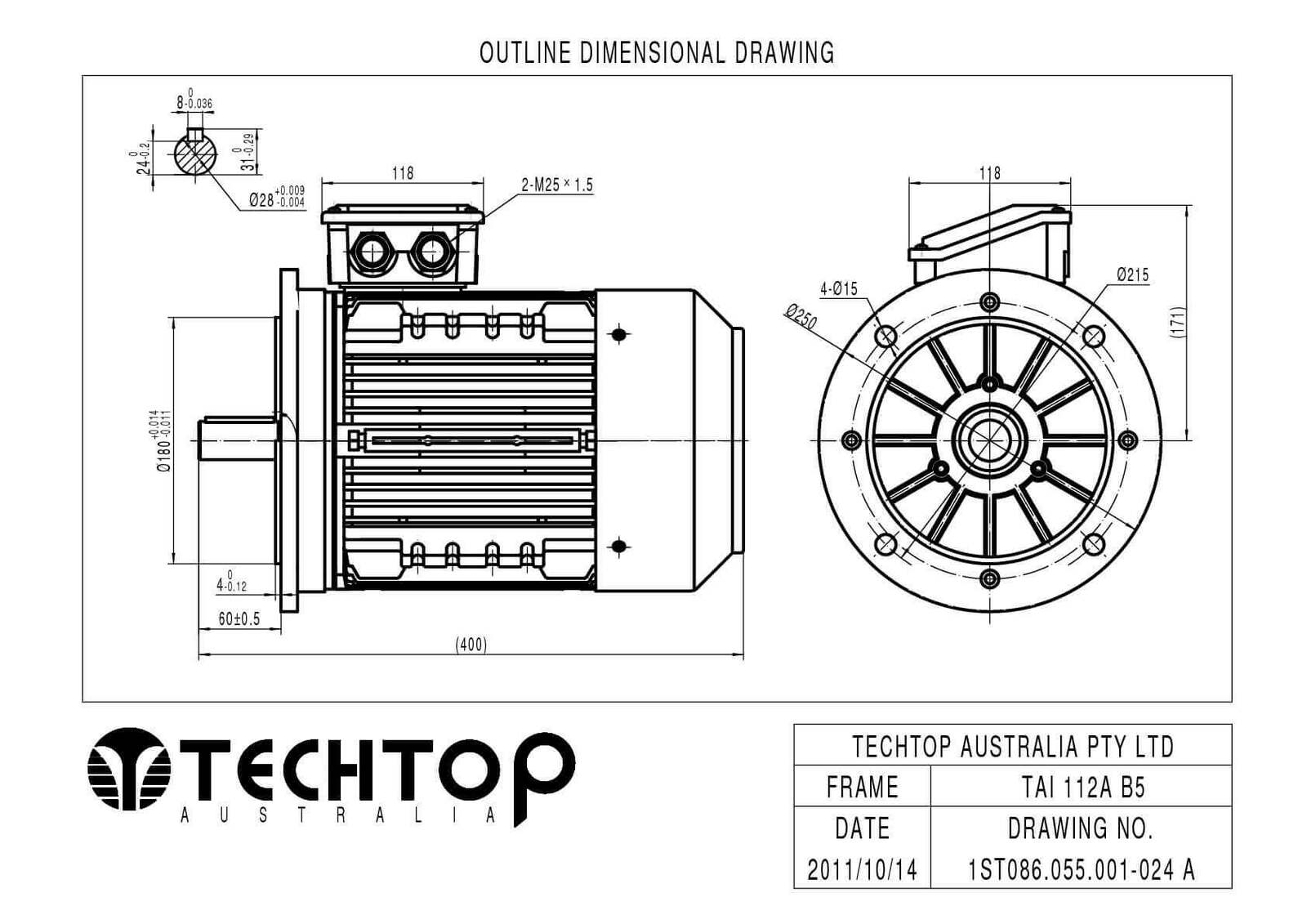

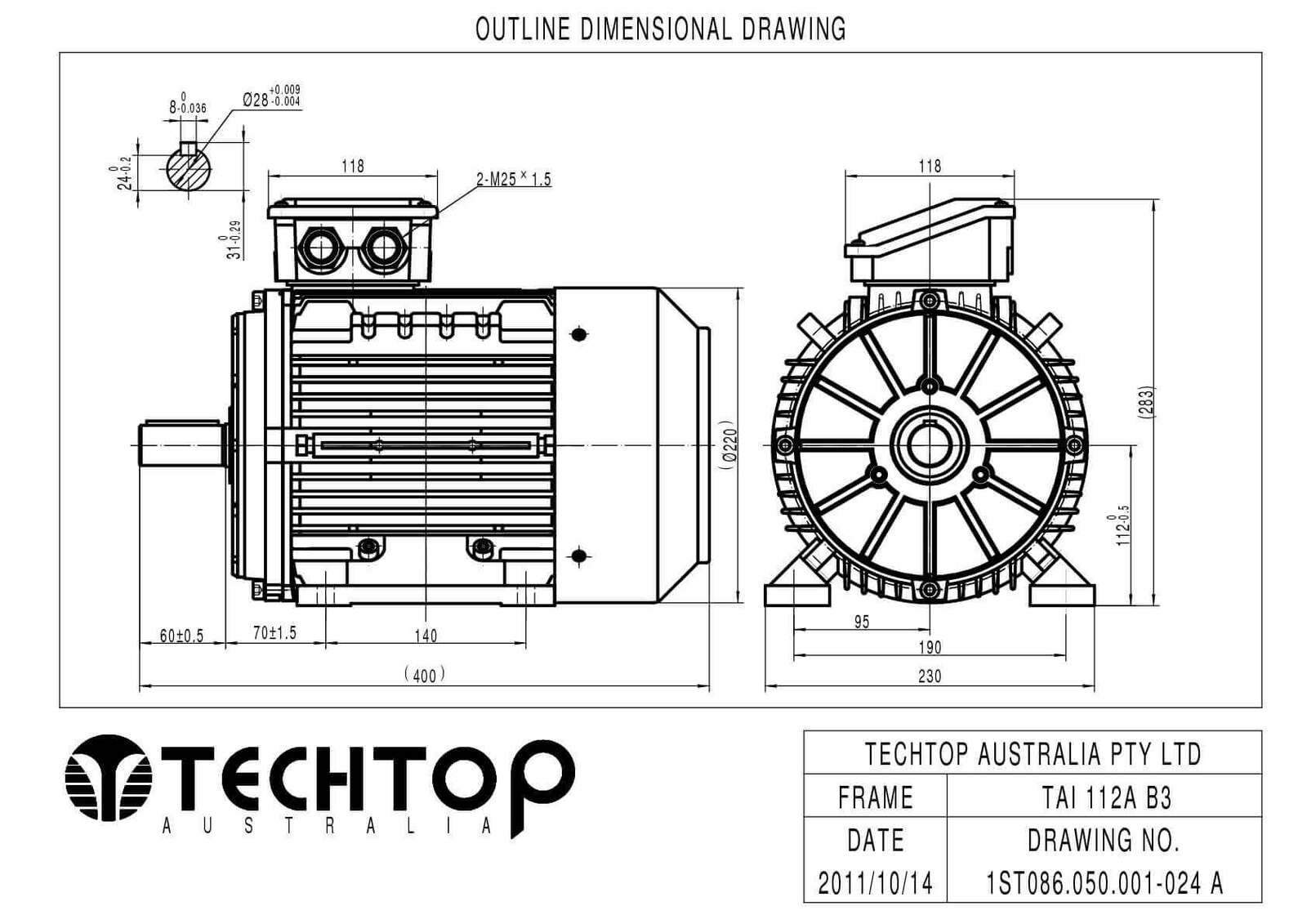

  • IEC Frame Size 112 MB
  • Shaft Diameter 28 mm
  • Mounting Position B3,B5R
  • Group Code Techtop-TAI-5.5kw
  • Type Three Phase
  • Material Aluminium
  • Nominal Rated Input Voltage 415 V
  • Rated Load (kW) 5.5
  • Rated Load (HP) 7
  • Series Techtop TAI
  • AC Phase Three Phase
  • Current Type AC
SKU: A0098861

TechTop 5.5kW 7 HP Motor 415V 3 Phase 2 Pole, 2920 RPM, Foot & Flange TA2B055BTAI1

415V Three Phase Aluminium Motor (TA2B055BTAI1)

$881.80
