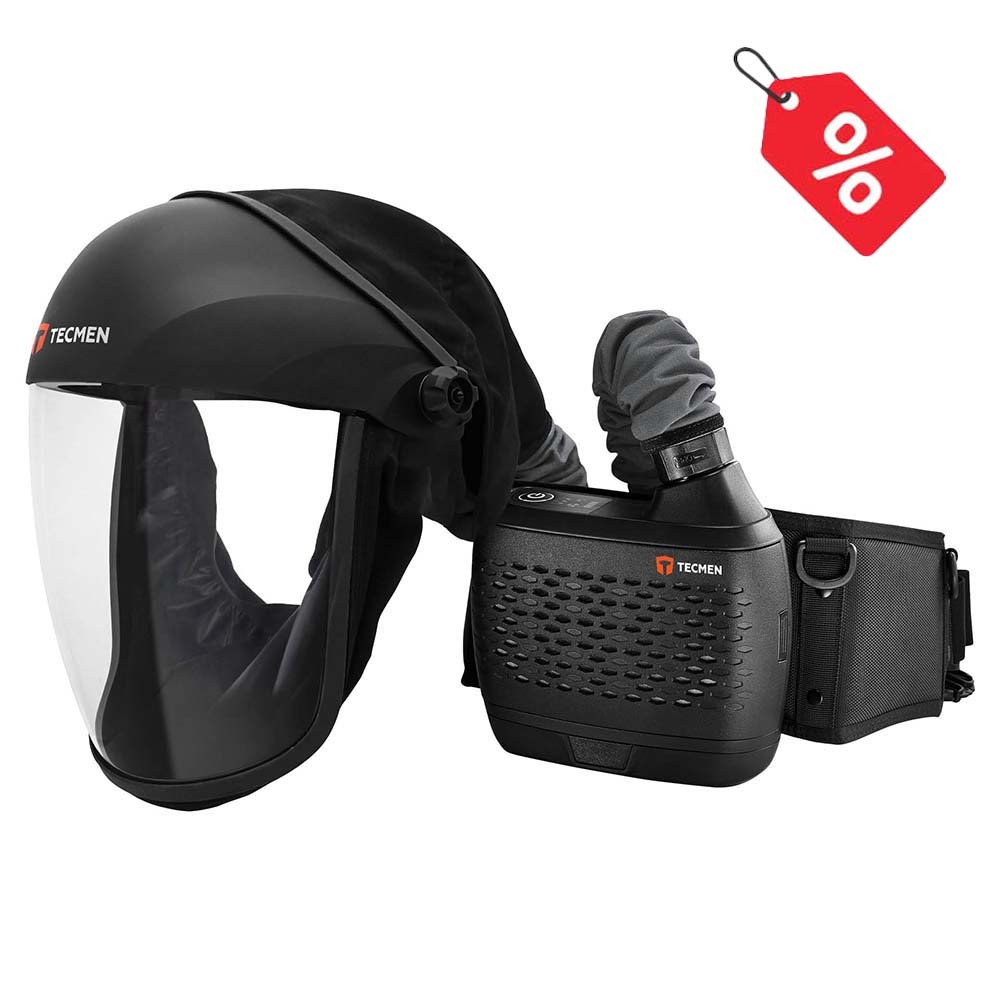

Tecmen PAPR Freflow V3 Face Shield TM-S1

• Optical grade PC lens bring high-resolution clear vision.
• High intensity lens provide against UV/IR, particle spatter, liquid spatter, metal melt, hot solid spatter to secure safety.
• Used with FreFlow V3 respiratory system, the overall filtration effieiency is as high as 99.97%, providing a comprehensive protection for respiratory, eye and face.

Classifications/Approvals

• Shield: EN 166, CSA Z94.3, ANSI Z87.1, AS/NZS 1337.1
• Respirator: EN 12941 TH3 P R SL, AS/NZS 1716 – Freflow V3, Particle filter with class P3 inside

Features

• Eye/face/respiratory protection
• Full Face Clear Lens
• Impact Resistant
• Class leading P3 filter
• Include shoulder strap and carry bag
• Intelligent air supply
• Class leading P3 filter
• Rechargeable Li-ion battery

Face Shields Specifications

• Shield Feature: Three-dimensional curved design to meet ergonomics
• Dimension of PC Lens: 212 x 220 x 1.8mm (height x width x thickness)
• Wight of PC Lens: 130g
• Shade Number of PC Lens: Transparent
• Application Industry: Surface processing in heavy industry, pharmacy, agriculture, laboratory
• Shield Approval: EN 166, CSA Z94.3, ANSI Z87.1, AS/NZS 1337.1

Respirator Specifications

• Airflow Rate:
  • Standard air flow: 170+lpm (6+cfm)
  • Fast speed air flow: 210+lpm (7.4+cfm)
• Battery Type: rechargeable Li-ion battery
• Battery Duration:
  • 9 hours (Standard Battery, 170+lpm)
  • 5 - 6 hours (Standard Battery, 210+lpm)
  • 15 hours (Standard Battery, 170+lpm)
  • 9 hours (Standard Battery, 210+lpm)
• Battery life: ≥550 charges
• Filter Efficiency: >99.97
• Alarms: Visible, audible and vibrate
• Operating temperature: -5°C to 55°C (23°F - 131°F)
• Storage temperature: -10°C to 55°C (14°F to 131°F}
• Relative Operating Humidity (R.H.): <90%
• Relative Storage Humidity: <90%
• Weight: 1020g
• Respirator Approval: EN 12941 TH3 P R SL, AS/NZS 1716
