Description

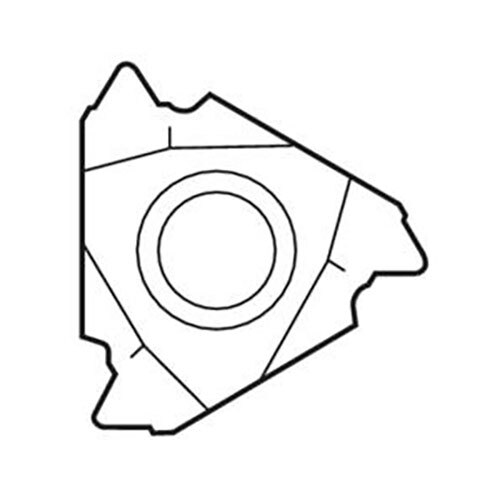

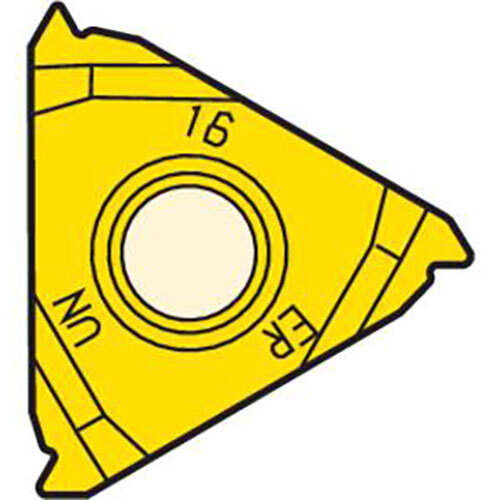

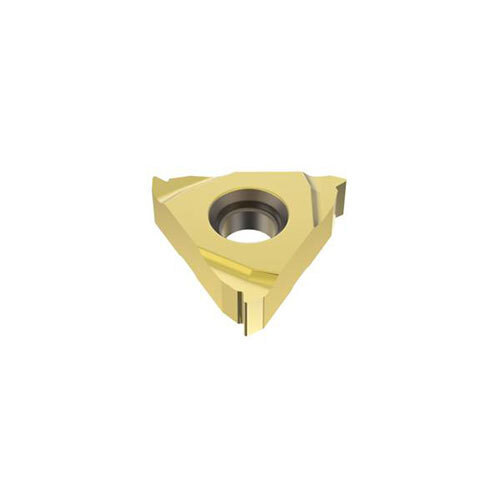

Thread Turning Insert 16ER - Am. UN Thread Grade-CP500 (A)

  • 16mm cutting edge length.
  • External, right cutting direction.
  • UN Thread, Am. UN.
  • A type chipbreaker, universal.
  • A chipbreaker can be used for applications in a variety of materials and low cutting forces.
  • Full profile insert, reusable threaded joints.

CP500 Grade

  • Universal very tough micrograin grade for all types of threading in most materials.
  • Excellent for stainless steel and difficult operations.
  • (Ti, Al)N + TiN.

About Seco Thread Turning

  • Our comprehensive selection of thread turning solutions for internal and external applications make it possible to produce high-quality threads in all sizes and profiles.
  • From direct-pressed single-point inserts to innovative tool holders to intuitive software, we have everything you need to increase your productivity and profits.
  • To help take the guesswork out of threading operations, our Thread Turning Wizard software eliminates complicated programs and calculations.
  • Requiring minimal input, the Wizard selects the best holder and inserts for the application, identifies the best operating parameters and then downloads the information to the machine toolā€™s CNC.

About Seco Snap-TapĀ® Threading System

  • We use advanced manufacturing processes to produce the precision cutting edges on our Snap-TapĀ® thread turning tools.
  • The process eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice.
  • Pair these tools with our Anti-Twist Toolholders and solid suggestions from our Thread Tuning Wizard software and thereā€™s no thread turning application you canā€™t handle.
  • Our popular range of Snap-TapĀ® thread turning tools are available in three insert chipbreaker geometries for the successful machining of steel and stainless steel.
  • While each geometry serves a unique purpose, they all feature the CP500 grade that features a highly wear-resistant PVD coating to provide dependable machining for a large majority of common thread turning applications.
  • The innovative tool holders made for use with Snap-TapĀ® inserts offer the best possible holding power available for long tool life and high accuracy.
  • They employ an Anti-Twist insert locking system that features a carbide pin in the back of the insert pocket that resists wear and prevents the insert from turning or twisting under pressure during machining.
  • For added insert and tool holder rigidity, a D-style clamp securely pulls the insert down and into the pocket.

Specifications

  • AIMS SKU A0120967
  • Brand Seco
  • Model Number 02444955
  • Barcode Number 44955024000205
  • Designation 16ER18UN-A,CP500
  • Cutting Edge Count (CEDC) 3
  • Insert Hand (IH) Right
  • Insert Thickness (S) mm 3.47
  • Corner Radius (RE) mm 0.18
  • Insert Seat Size Code (SSC) 16
  • Inscribed Circle Diameter (IC) mm 9.53
  • Theoretical Cutting Edge Length (L) mm 16.5
  • Thread Type (TTP) External
  • Threads Per Inch Minimum (TPIN) 18
  • Threads Per Inch Maximum (TPIX) 18
  • Tooth Count (NT) 1
  • Profile Distance Ex (PDX) mm 0.8
  • Profile Distance Ey (PDY) mm 0.8
  • Profile Included Angle (PNA) deg 60.0 deg
  • Thread Tolerance Class (TCTR) 3A
SKU: A0120967

Seco External Snap-TapĀ® Thread Turning Insert 3.47 x 16.5mm Right 18-18 TPI CP500 UN Thread A Chipbreaker 16ER18UN-A,CP500 Pack of 2

Thread Turning Insert 16ER - Am. UN Thread Grade-CP500 (

$69.03
RRP $79.64
SAVE $10.61 (13%)
