Specifications
- AIMS SKU A0120946
- Brand Seco
- Model Number 00049959
- Barcode Number 49959000000208
- Designation 16ER8APIRD,CP500
- Cutting Edge Count (CEDC) 3
- Insert Hand (IH) Right

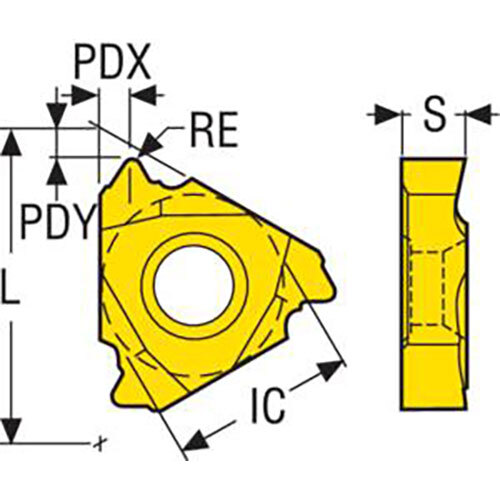

- Insert Thickness (S) mm 3.47
- Corner Radius (RE) mm 0.46
- Insert Seat Size Code (SSC) 16
- Inscribed Circle Diameter (IC) mm 9.53
- Theoretical Cutting Edge Length (L) mm 16.5
- Thread Type (TTP) External
- Threads Per Inch Minimum (TPIN) 8
- Threads Per Inch Maximum (TPIX) 8
- Tooth Count (NT) 1
- Profile Distance Ex (PDX) mm 1.5
- Profile Distance Ey (PDY) mm 1.5
- Profile Included Angle (PNA) deg 60.0 deg
- Thread Tolerance Class (TCTR) API RD spec 5B
- Type Snap-Tap® Thread Turning Insert
- Grade CP500
- Thread Type (TTP) External
SKU: A0120946

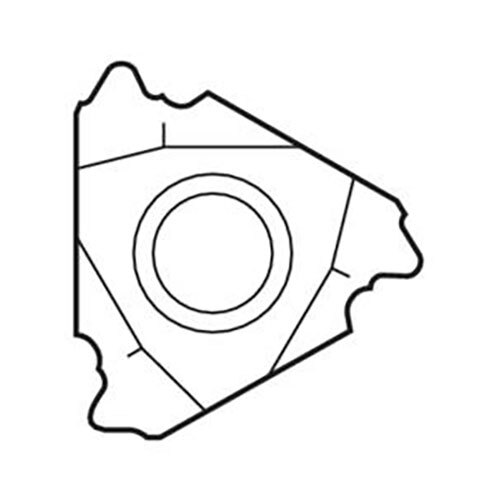

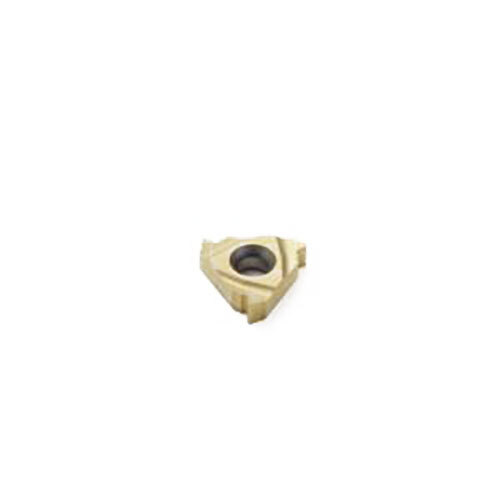

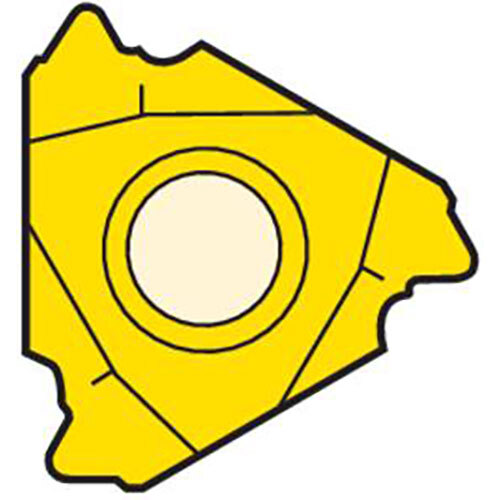

Seco External Snap-Tap® Thread Turning Insert 3.47 x 16.5mm Right 8-8 TPI CP500 API RD Thread 16ER8APIRD,CP500 Pack of 2
Thread Turning Insert 16ER - API Round Casing Thread Gra
$103.92
