Specifications
- AIMS SKU A0118585
- Brand Seco
- Model Number 02528503
- Barcode Number 28503025000100
- Designation CEL2525M20QHD

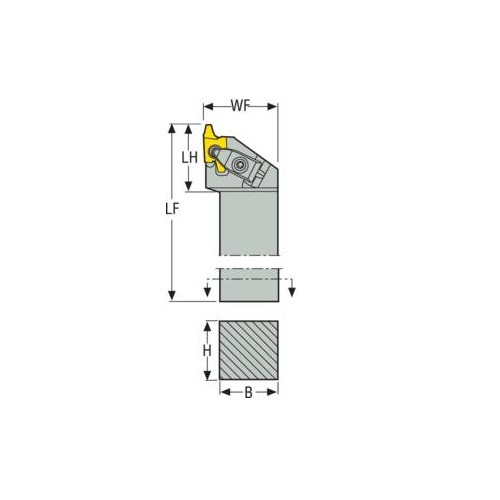

- Functional Length (LF) mm 150
- Connection Text Machine Side (CTMS) 2525
- Direction Of Cutting (hand) Left
- Shank Width (b) mm 25
- Connection Text Workpiece Side (ctws) 20NR
- Height Of Tool Holder Shank (H) mm 25
- Functional Width (WF) mm 32
- Head Length (lh ) Mm 34
- Type Snap-Tap© Thread Turning Toolholder
- Shank Type Square shank
- Insert Clamping System (ICS) C
- Version (internal/external/both) (ver) External
SKU: A0118585

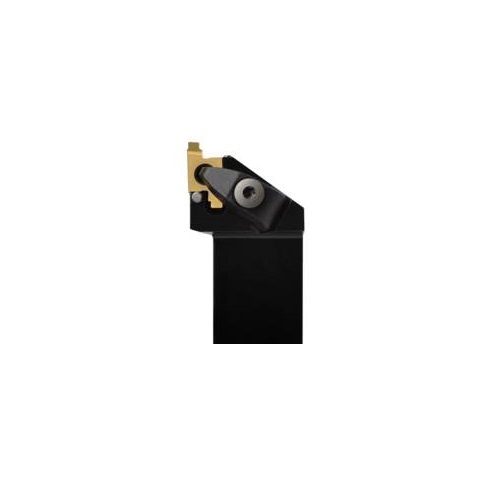

Seco External Snap-Tap® Thread Turning Toolholder (Clamp) 20 x 32 x 150mm Left Cranked - Heavy Duty CEL2525M20QHD
Thread Turning Toolholder Clamp - Cranked-Heavy Duty (CE
$272.80
SAVE $68.20 (20%)
