Description

***Lead time is 6 to 8 weeks from receipt of the order. Contact AIMS for further assistance.***

Toho Electric Chain Hoists 3 Phase 2 Speed

  • Load Limited
  • Thermal Prevention Device
  • Light weight, compact design with high efficiency motor
  • Pressed steel structure, high strength body
  • High tensile alloy steel top & bottom hooks
  • Grade 80 ‚Äì 7.1mm Alloy Steel load chain
  • Limit switches fitted at top and bottom ends to prevent chain runout
  • 415V, 50Hz Dual speed Motor 1.8kw. (3 Phase)
  • Complies with ASNZS 1418.2 standard
  • Hoists can be re-chained to your required length (limits apply)
  • IP Rating Hoist: IP54 Control: IP65
    * Hoists can be re-chained to your required length (limits apply)

Specifications

  • AIMS SKU A0170692
  • Brand Toho
  • Model Number TECH-3PH-2SP-0103
  • Barcode Number 9343662004759
  • Motor Power (kW) 1.2
  • Net Weight (kg) 61
  • Voltage Three Phase (415V)
  • Lifting Speed (m/min) 1.2/3.5
  • Capacity (Tonne) 1
  • Phase 3-Phase
  • Standard Lift 3 m
  • Running Test Load (kN) 12.5
  • No. of Chain 1
  • Dia of Chain (mm) 7.1
  • Extra weight per metre of extra lift (kg) 2.2
  • Type Electric Chain Hoist
  • Material Steel
SKU: A0170692

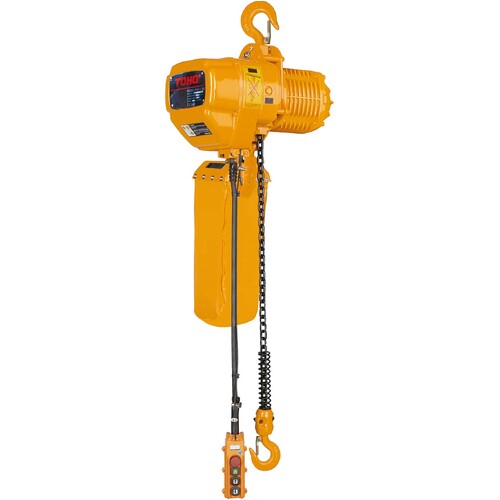

Toho TECH-3PH-2SP-0103 1T 3m Three Phase 2 Speed Electric Chain Hoist

Toho Electric Chain Hoist Three Phase 2 Speed

$2,272.90
RRP $2,695.00
SAVE $422.10 (16%)
