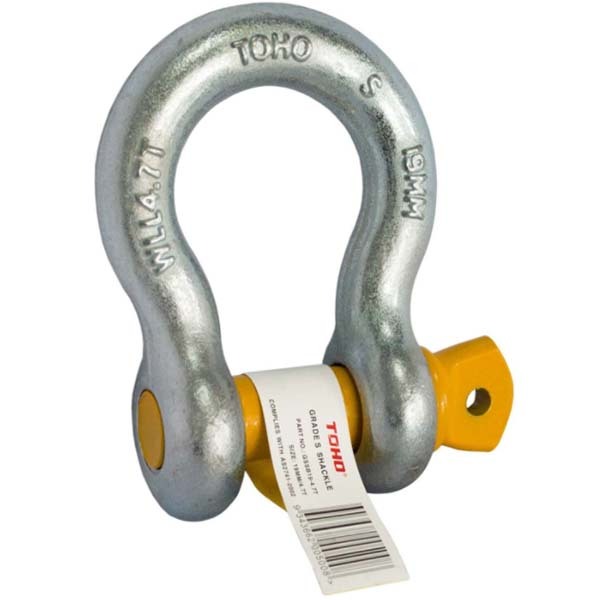

Toho Yellow Screw Pin Bow Shackle Galvanised Grade S

Description

Toho Yellow Screw Pin Bow Shackle Galvanised Grade S

Compliant and meet the requirement of AS 2741.
The most common shackles used in lifting applications, with a high strength to size ratio.
Easy and effective way of providing a connection of slings, chains and wire ropes.
Supplied in a galvanised finish with a yellow painted pin.
Suitable applications: Marine, agricultural, towing, & general industrial.

Specifications

AIMS SKU A0170509

Brand Toho

Model Number GSSB06-0.5T

Barcode Number 9343662005060

WLL (T) 0.5

Body Diametre 6 mm

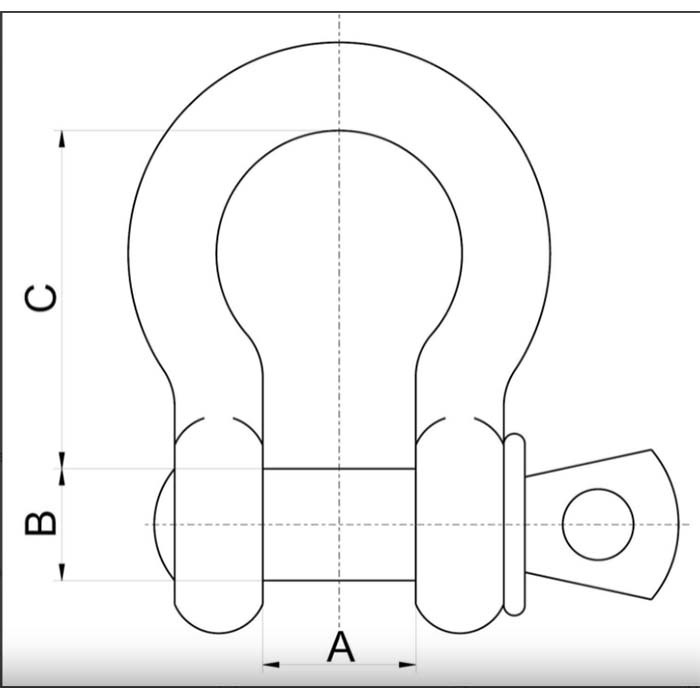

Throat Opening (A) mm 12

Pin Diametre (B) mm 8

Throat Depth (C) mm 25

Type Bow Shackle Screw Pin
Finish Galvanised
Grade Grade S

Calculate Shipping

Resources

Technical Data Sheet
