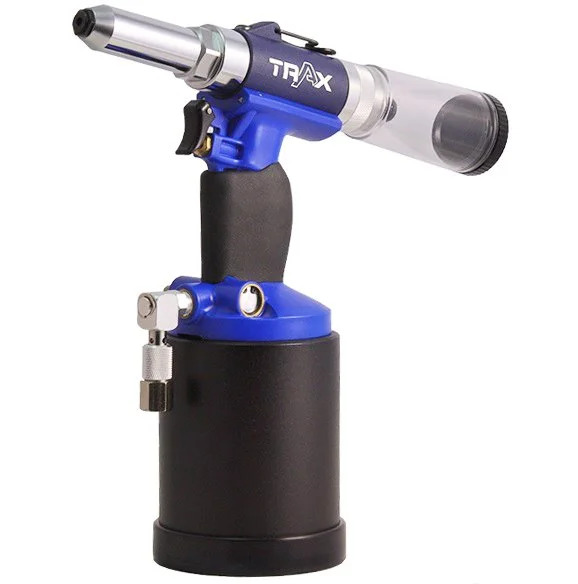

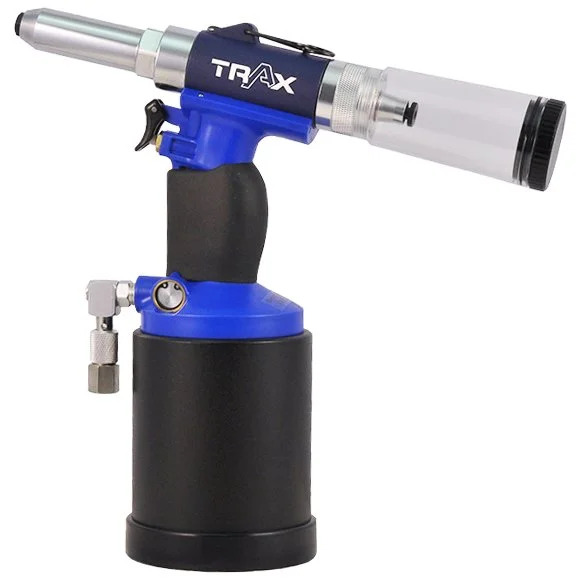

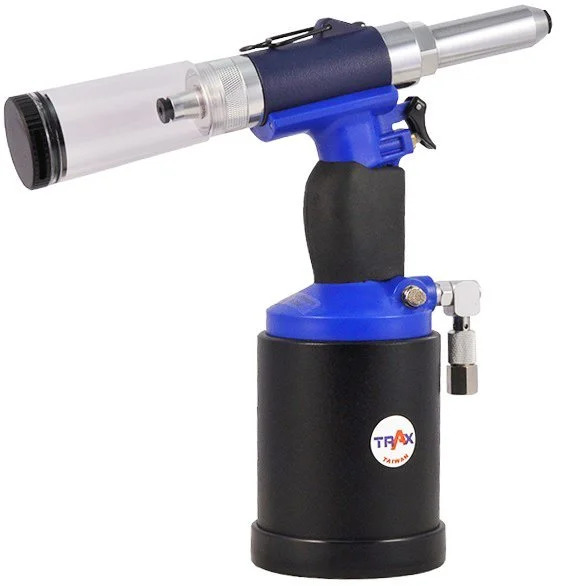

Trax ARX-380 5/16" Heavy Duty Air Hydraulic Riveter

Description

Trax 5/16" Heavy Duty Air Hydraulic Riveter ARX-380

Features:

Largest power 3,800lb-f
Long Stroke 22.5mm
Set 3/16" and 5/16" to structure around Monobolt rivets, T-type rivets and standard rivets in all materials
Low recoil of shock-less ca reduce parts consume and minimise fatigue

Specification:

Traction Power (kgf / lbf)	1,723 / 3,800 at (85psi)
Stroke Length (mm)	22.5
Net Weight (kg)	1.88
Working Air Pressure (psi)	85 - 95
Nosepiece	3/16" (4.8mm) 1/4" (6.4mm) 7/32" (5.6mm) 5/16" (7.8mm)
Width x Height (mm)	305 x 310
Air Consumption (cfm)	0 - 4
Vacuum	YES
Capacity	3/16" (4.8mm) 1/4" (6.4mm) 7/32" (5.6mm) 5/16" (7.8mm) In all material

Specifications

AIMS SKU A0141515

Brand Trax

Model Number ARX-380

Type Air Hydraulic Riveter

Weight (g) 1880

Air Pressure (psi) 75 - 95

Air Consumption (CFM) 4

Strokes Length (mm) 22.5
