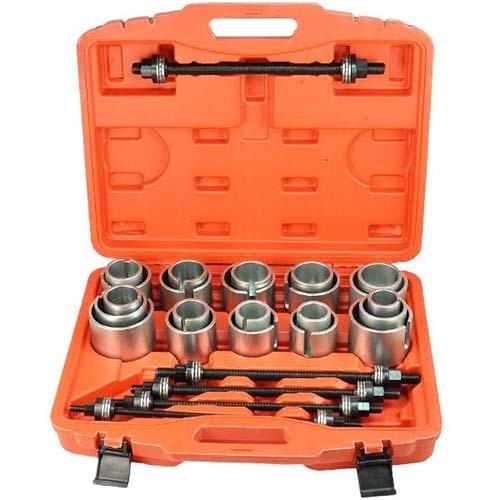

Trax Press & Pull Sleeve Set, 27Pc Set

Specifications:

• Universal toolset for extracting and drawing in: Silent bearings, hydraulic bearings, bearing bushes, ball bearings, shaft seals, rubber bearings, etc.
• Fully universal application. Ideal for different vehicles.
• Cars + HGVs. Depending on requirements, the particular sleeves can also be individually reworked (e.g. recess, etc.)
• The application also with workshop press + press frame.
• 22 x Press-on Sleeves
  • Inside - Ø34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 75, 80 mm.
  • Outside - Ø44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82, 85, 90 mm.
• Force Screw Length: 350mm
• Adaptor Wall Thickness: 5mm
• Adaptor Height: 60mm
• Force Screw Threads: 10x1.5, 12x1.5, 14x1.5, 16x1.5, 18x1.5mm
