Description

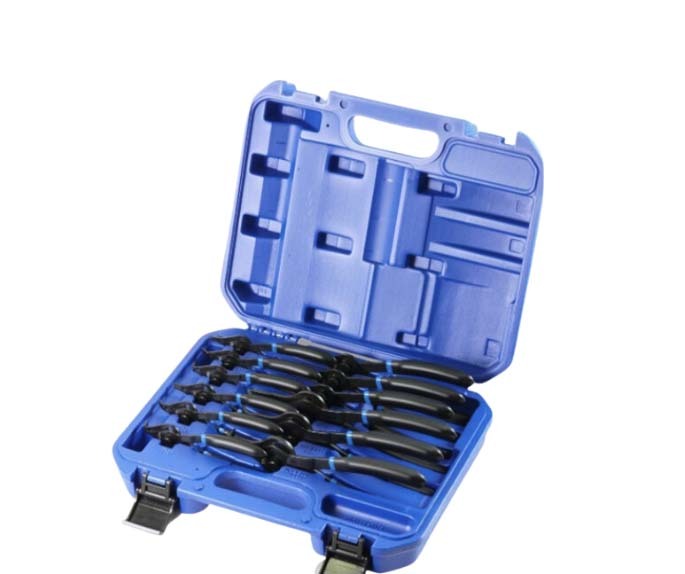

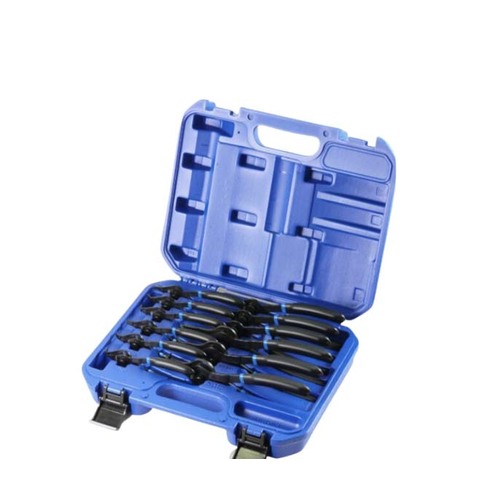

Trax Internal/External Circlip Set - ARX-CP3012

These versatile circlip pliers handles both internal and external circlips ranging from 8mm to 82mm.
Made from heat-treated chrome molybdenum (CR-MO) steel for superior strength and durability, it tackles tough jobs with ease.
The ergonomic handle provides a comfortable grip for precise control.

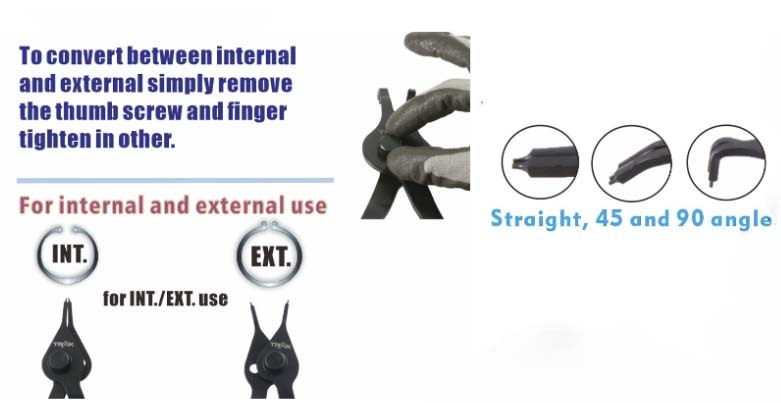

Quickly convert between internal and external applications with the removable thumb screw.

Contents

Part Number	Tip Angle	Tip Size (in/mm)	Internal Size - Internal (Bore)	External Size - External (Shape)
ARX-CP100	0°	0.038/1.0	8-18mm	8-18mm
ARX-CP104	45°	0.038/1.0	8-18mm	8-18mm
ARX-CP109	90°	0.038/1.0	8-18mm	8-18mm
ARX-CP120	0°	0.047/1.2	12-25mm	12-25mm
ARX-CP124	45°	0.047/1.2	12-25mm	12-25mm
ARX-CP129	90°	0.047/1.2	12-25mm	12-25mm
ARX-CP180	0°	0.070/1.8	18-48mm	18-48mm
ARX-CP184	45°	0.070/1.8	18-48mm	18-48mm
ARX-CP189	90°	0.070/1.8	18-48mm	18-48mm
ARX-CP230	0°	0.090/2.3	31-82mm	31-82mm
ARX-CP234	45°	0.090/2.3	31-82mm	31-82mm
ARX-CP239	90°	0.090/2.3	31-82mm	31-82mm
