Name: AIMS Industrial Supplies
Address: 108 Ashford Avenue, Milperra, NSW, 2214, AU
Telephone: (02) 9773 0122
Price range: $1 - $20000

Description

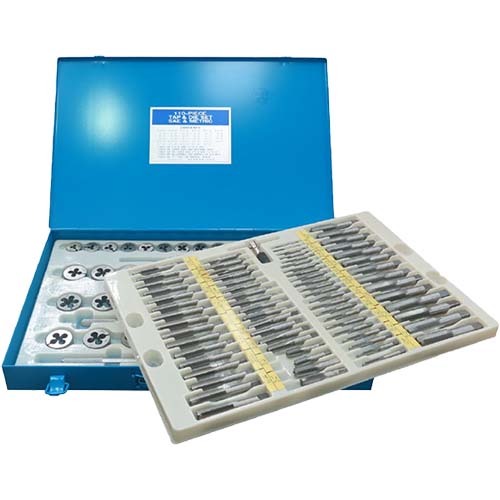

Trax Tap & Die Sets

Combination of Metric, UNC, UNF, UNS and NPT Thread
Dies Stock: 1" & 1-1/2"
Tap Wrench No.: #6 & #4
T-Type Tap Holder: No. 1 (1/16"-7/16" 1.6-6mm)
Dies: 35 pcs each per size
Weight Per Set: 25 kgs

Set No. 110CFM	Metric	UNC	UNF	UNS	NPT
Cutting Size and Thread Per Inch	M6 x 1.00	No.4 x 40 1/4-20	No.10 x 32 1/4-28	1/4-24	1/8-27
Cutting Size and Thread Per Inch	M8 x 1.25	No.6 x 32 5/16-18	5/16-24	1/4-32	1/4-18
Cutting Size and Thread Per Inch	M10 x 1.50	No.8 x 32 3/8-16	3/8-24	--	--
Cutting Size and Thread Per Inch	M10 x 1.00	No.10 x 24 7/16-14	7/16-20	--	--
Cutting Size and Thread Per Inch	M11 x 1.50	No.12 x 24 1/2-13	1/2-20	--	--
Cutting Size and Thread Per Inch	M12 x 1.25	9/16-12	9/16-18	--	--
Cutting Size and Thread Per Inch	M12 x 1.75	5/8-11	3/4-16	--	--
Cutting Size and Thread Per Inch	M14 x 1.25	3/4-10	--	--	--
Cutting Size and Thread Per Inch	M18 X 1.50	--	--	--
